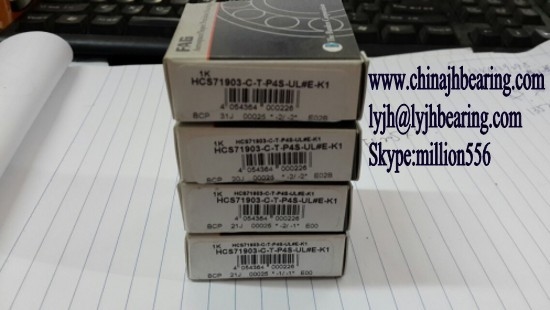

HCS71903-C-T-P4S-UL-K1 angular contact ball bearing 17x30x7mm,ceramic ball and seal

Large Image : HCS71903-C-T-P4S-UL-K1 angular contact ball bearing 17x30x7mm,ceramic ball and seal

Product Details:

Place of Origin:	Germany
Brand Name:	FAG or OEM
Certification:	Quality certificate
Model Number:	HCS71903-C-T-P4S-UL-K1

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Carton or standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 5- 8 days
Payment Terms:	T/T,L/C
Supply Ability:	1000 PCS/Month

Contact Now

Detailed Product Description

Precision Rating:	P4 P5	Seals Type:	No Seal
Number Of Row:	Single Row

HCS71903.C.T.P4S.UL.K1 High Precision Ball Bearing HCS71903-C-T-P4S-UL-K1 Machine tool main spindle bearing

HCS71903CTP4SULK1 FAG High Speed Angular contact Bearing, Ball Bearing is Super precision Angular with 15 degrees contact angle and Phonetic cage, bearing is P4 quality and made in Germany

Item: HCS71903.C.T.P4S.UL.K1 FAG Ball Bearing,FAG machine tool main spindle bearing

Type: FAG Angular contact Ball Bearing

ball: ceramic ball

Quality: P4 Grade

Dimensions: 17mm x30mm x7mm /Metric

ID (inner diameter)/Bore: 17mm

OD (outer diameter): 30mm

Width/Height/thickness: 7mm

Size:17 x 30 x 7 mm

Quantity: One Bearing

Dynamic load rating Cr: 2600 N

Static load rating Cor: 790 N
