B7014-E-T-P4S-UL Machine tool main spindle bearing,B7014.E.T.P4S.UL ball bearing,stock

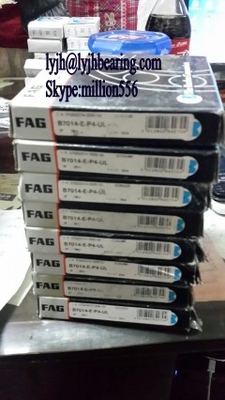

Large Image : B7014-E-T-P4S-UL Machine tool main spindle bearing,B7014.E.T.P4S.UL ball bearing,stock

Product Details:

Place of Origin:	Germany
Brand Name:	FAG or OEM
Certification:	Quality certificate
Model Number:	B7014-E-T-P4S-UL

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Carton or standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 5- 8 days
Payment Terms:	T/T,L/C
Supply Ability:	1000 PCS/Month

Contact Now

Detailed Product Description

Precision Rating:	P4 P5	Seals Type:	No Seal
Number Of Row:	Single Row

B7014-E-T-P4S-UL High Precision Ball Bearing,Machine tool main spindle bearing

B7014.E.T.P4S.UL FAG High Speed Angular Spindle Ball Bearing
25 degrees Contact Angle
P4 Grade
70mm x 110mm x 20mm
Made in Germany

B7014.E.T.P4S.UL FAG High Speed Angular Spindle Bearing, Ball Bearing is Super precision Angular with 25 degrees contact angle and Phenolic cage, bearing is P4 quality and made in Germany

Item: B7014-E-T-P4S-UL FAG Ball Bearing,FAG machine tool main spindle bearing

Type: FAG Angular Spindle Ball Bearing

ball: steel

Quality: P4 Grade

Dimensions: 70mm x 110mm x 20mm /Metric

ID (inner diameter)/Bore: 70mm

OD (outer diameter): 110mm

Width/Height/thickness: 20mm

Size:70 x 110 x 20 mm

Quantity: One Bearing

Dynamic load rating Cr: 48000 N

Static load rating Cor: 29000 N
