B71840-E-TPA-P4 spindle bearing:200x250x24 mm,P4 Grade,B71840-E-TPA-P4 ball bearing price

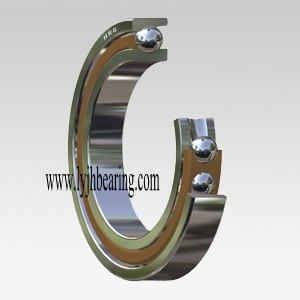

Large Image : B71840-E-TPA-P4 spindle bearing:200x250x24 mm,P4 Grade,B71840-E-TPA-P4 ball bearing price

Product Details:

Place of Origin:	Germany
Brand Name:	FAG or OEM
Certification:	Quality certificate
Model Number:	B71840-E-TPA-P4

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Carton or standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 5- 8 days
Payment Terms:	T/T,L/C
Supply Ability:	1000 PCS/Month

Contact Now

Detailed Product Description

Precision Rating:	P4 P5 P6 P0	Seals Type:	No Seal
Number Of Row:	Single Row

B71840-E-TPA-P4 Machine tool main spindle bearing with super precision bearing, B71840-E-TPA-P4 Bearing is a popular item that could be used in different application, the dimensions are 200x250x24 mm , B71840-E-TPA-P4 spindle Bearing with adjusted, in pairs or sets, contact angle α = 25°, restricted tolerances.

Item: B71840-E-TPA-P4 machine tool main spindle bearing

Type: ball bearing or angular contact ball bearing

Material:GCr15,GCr15SiMn, Chrome steel

Dimension: 200x250x24 mm,

ID(Inner diameter) bore:200 mm metric size

OD(Outer diameter) bore:250 mm metric size

Width/Height/Thichkness:24 mm metric size

Quantity: one bearing

• Dynamic load rating Cr: 81,000 N

• Static load rating Cor: 114,000 N

• Limiting Speed:

o Grease Lubrication: 4,300 RPM

Oil Lubrication: 6,700 RPM

B:Standard steel balls.

E:Angular contact :25 degree

T: Laminated fabric guidance on outer ring

P4S:FAG Standard better than P4 to DIN620

Basic Dimensions(mm)

Bearing Designations

Precision Rating

basic load rating(KN)

Limiting Speed

(r/min)

Weight(KGS)

Cor

Grease

oil

200

250

B71840-E-TPA-P4

106

3800

5600

2.3

If you want to know more, please contact us as follows:

JinHang Precision Bearing Co.,Ltd

www.chinajhbearing.com www.lyjhbearing.com

E-mail: lyjh@lyjhbearing.com

MSN: lyjhbearing@hotmail.com

Skype: million556

The following bearings we are stock,If you need following products, Please contact us.

YRT580 580X750X90 MM

YRT650 650X870X122MM

YRT850 850x1095x124mm

YRT950 950x1200x132mm

YRT260 260X385X55 MM

YRT200 200X300X45 MM

YRT180 180x280x43mm

YRT 150 150X240X40 mm

YRT120 120x210x40mm

YRT100 100x185x38mm

YRT80 80x146x35mm

YRT50 50x126x30mm
