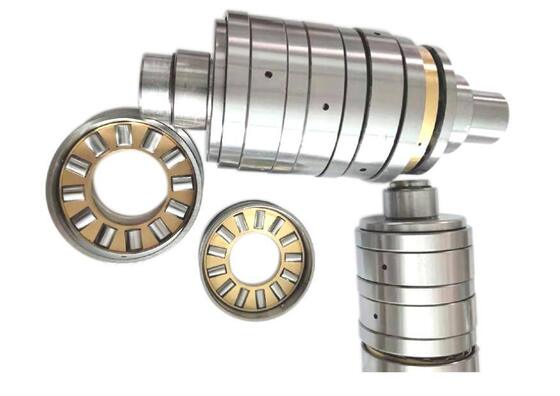

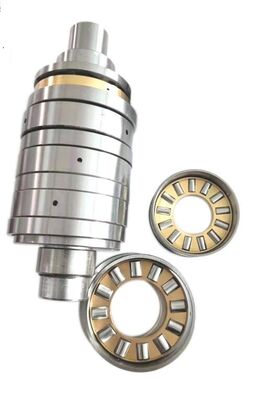

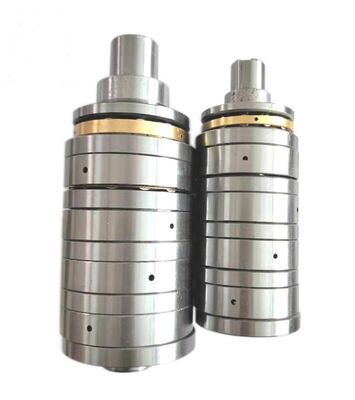

Heavy Duty Food Extruder Multi-Stage Bearings M2CT145385

Heavy duty food extruder multi-stage bearings M2CT145385

Heavy duty PVC Rubber extruder screw gearbox use two stages thrust roller bearing M2CT145385 with full size 145x385x233mm, it can carry axial direction load. There are two major types of extruders; single and twin screw co-rotating and counter rotating that will use tandem roller bearing.

Bearing factory Number:M2CT145385
Item code:M2CT145385
Original place:China LuoYang
Application: plastic/rubber/pet food extruder gearbox
Lubrication:Oil lubrication
Boundary dimension:145x385x233mm
Tandem stages number:two row stages
Bearing Material:High quality bearing steel
Description:cylindrical roller thrust bearing
UPC/HS code:8482500090
Outer diameter D:145mm
Inner diameter d:385mm
The total height:233mm
Cage type Nylon or Steel or Brass Standard Cage
Precision grade:P5 P4 grade
Weight:14.4KGS
Cor:20956KN
Cr:4510KN
The package:strong carton
Rolling elements:Roller

Tandem Bearings Type
1. Basic Type: The bearing adopts elastic spacer to connect the shaft washer,housing washer, roller and cage assembly. The components of this Thrust Bearings are demountable. The user should assemble or dismount the bearing meticulously according to our guide book.
2. Shaft Type: The bearing is made by penetrating an axis through the inner bore of basic type bearing and fastening the bearing to the axis by locking collar/snap ring. The components of this type bearing are inseparable. Shaft type tandem bearing is variational structure of basic type.
3. Multi-stage cylindrical roller thrust bearing (sleeve type) locking collar is made by covering a sleeve to the external of the basic type multi-stage cylindrical roller thrust bearing. It is also inseparable,and is assembled and disassembled as a whole.
