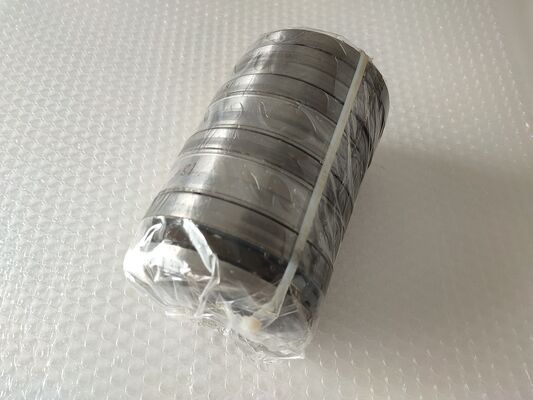

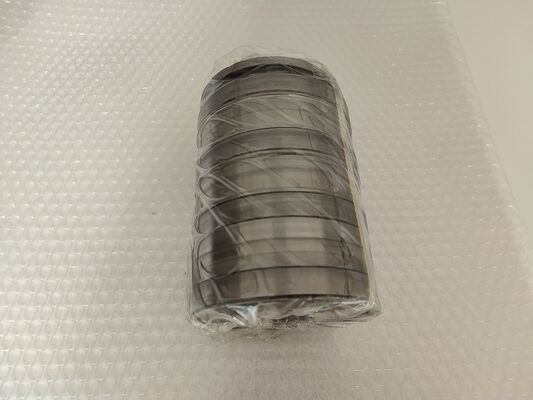

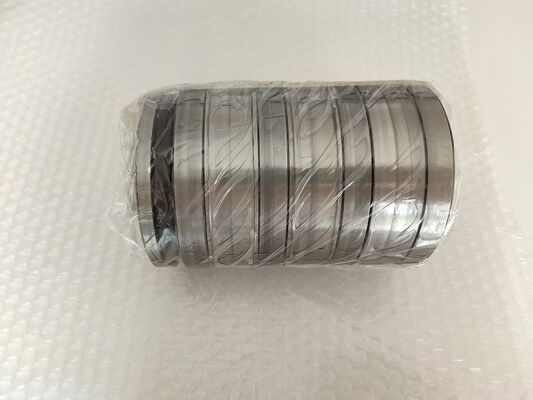

Two Stages Tandem Roller Bearing M2CT88190 In Stock

Two stages tandem roller bearing M2CT88190 In stock

 Bearing factory Number:M2CT88190
Item code:M2CT88190
Original place:China LuoYang
Application: plastic/rubber/pet food extruder gearbox
Lubrication:Oil lubrication
Boundary dimension:88.9*190.5*107.95mm
Tandem stages number:two row stages
Outer diameter D:190.5mm
Inner diameter d:88.9mm
The total height:107.95mm
Cage type Nylon or Steel or Brass Standard Cage
Precision grade:P5 P4 grade
Weight:14.4KGS
Cor:5535KN
Cr:1359KN
Bearing Material:High quality bearing steel
Description:cylindrical roller thrust bearing
UPC/HS code:8482500090
The package:strong carton
Rolling elements:Roller
M2CT:The Axial Forces Are Supported By A four-Stage Tandem Bearing M2CT Combined With An Axial Cylindrical Roller Bearing Of Series 894
Application:gearboxes for single and twin screw extrudes in the rubber and plastics industry.
deep hole drilling equipment
friction welding machines.

Tandem Bearings Type
1. Basic Type: The bearing adopts elastic spacer to connect the shaft washer,housing washer, roller and cage assembly. The components of this Thrust Bearings are demountable. The user should assemble or dismount the bearing meticulously according to our guide book.
2. Shaft Type: The bearing is made by penetrating an axis through the inner bore of basic type bearing and fastening the bearing to the axis by locking collar/snap ring. The components of this type bearing are inseparable. Shaft type tandem bearing is variational structure of basic type.
3. Multi-stage cylindrical roller thrust bearing (sleeve type) locking collar is made by covering a sleeve to the external of the basic type multi-stage cylindrical roller thrust bearing. It is also inseparable,and is assembled and disassembled as a whole.
