Angular Contact Ball Bearings 7038AC For High Frequency Motors

Angular Contact Ball Bearings 7038AC for high frequency motors

7038AC 7038B 7038c bearing belongs to high precision ball bearing . Single Row 70xx, 72xx and 73xx series.
With A, B, C and AC contact angle.
Double Row types with ball slot (32xx and 33xx Series) and without ball slot (52xx and 53xx series) design.

The precision ball bearing 7038AC specification as following:
The bearing full name:single row four point contact ball bearing
The bearing full items:7038AC
The bearing old type:7038c 7038b
The bearing full inch size:7.48x11.42x1.81inch size
The bearing outer diameter inch size:11.42
The bearing inner diameter inch size:7.48
The bearing height:1.81 inch size
The bearing boundary size:190X290X46mm
The bearing outerside diameter:290mm
The bearing inside diameter:190mm
The bearing width:46mm
The bearing clearance:C1 C2 C3 Group
The bearing load :
The dynamic load:199KN
The static load:255KN
The bearing grease working speed:1600 rpm
The bearing oil working speed:2200rpm
The bearing accuracy grade:P5 P4 P2 grade
The delivery time: in stock, within one day after getting the order

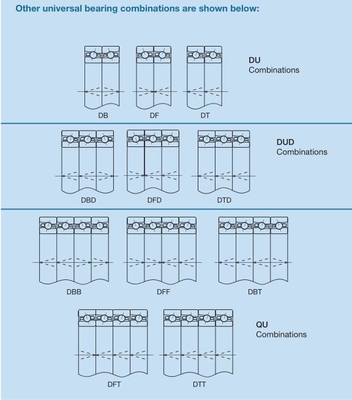

 Back to back bearing arrangement
Face to face bearing arrangement
Tandem bearing arrangement
DB:Back-to-back arrangement Designation suffix DB
DF:Designation suffix DB Designation suffix DF (FF)
DT:Tandem arrangement Designation suffix DT (T)
TBT:Back-to-back and tandem arrangement Designation suffix TBT (TD)
TFT:Face-to-face and tandem arrangement Designation suffix TFT (TF)
TT:Tandem arrangement Designation suffix TT (3T)
QBC:Tandem back-to-back arrangement Designation suffix QBC (TDT)
QFC:Tandem face-to-face arrangement Designation suffix QFC (TFT)
QBT:Back-to-back and tandem arrangement Designation suffix QBT (3TD)
QFT:Face-to-face and tandem arrangement Designation suffix QFT (3TF)
QT:Tandem arrangement Designation suffix QT (4T)
