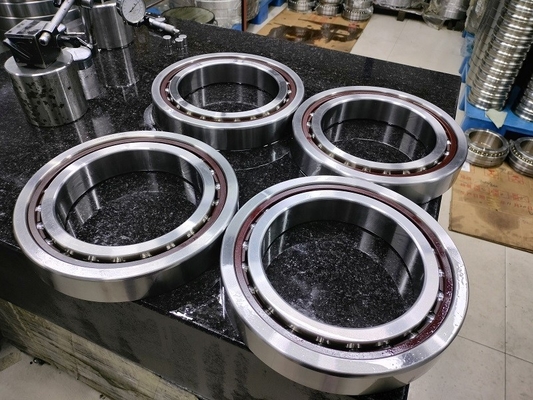

Angular Contact Ball Bearings 7036AC for Machine Spindles

The high precision ball bearing 7036ac structure belongs to angular contact ball bearing.Angle is smaller, bearing of the radial force is bigger, the smaller the axial forceCommonly used 15 degree is high precision, high speed, which mainly bear radial force and a small number of axial force of angular contact ball bearing
25 degrees and 30 degrees Angle bear radial force relative is big.

The cnc machine spindle parts precision ball bearing 7036AC specification as following:
The bearing full name:single row four point contact ball bearing
The bearing full items:7036AC
The bearing old type:7036c 7036b
ID(Inner diameter) bore:180 mm metric size
OD(Outer diameter) bore:280 mm metric size
Width/Height/Thichkness:46 mm metric size
The bearing clearance:C1 C2 C3 Group
The contact angle C=15 degree, AC =25 degree,B=40 degree
TBT:Back-to-back and tandem arrangement Designation suffix TBT (TD)
TFT:Face-to-face and tandem arrangement Designation suffix TFT (TF)
The bearing rolling element:Ball
The ball bearing material:Steel ball, ceramic ball
The bearing ring material:super chorme steel
The bearing package:strong carton
The bearing load :
The dynamic load:195KN
The static load:240KN
The bearing weight:10KGS
The bearing full inch size:7.08x11.02x1.81inch size
The bearing outer diameter inch size:11.02
The bearing inner diameter inch size:7.08
The bearing height:1.81 inch size
The bearing accuracy grade:P5 P4 P2 grade
The delivery time: in stock, within one day after getting the order
The bearing stock qty:2000PCS

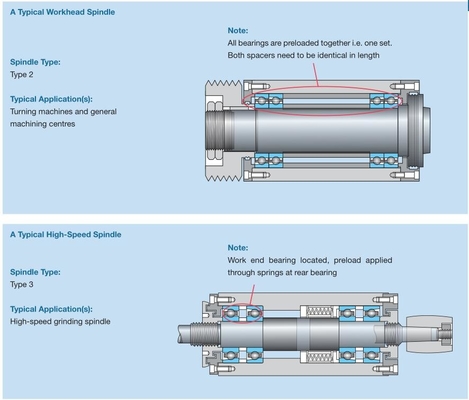

 Back to back bearing arrangement
Face to face bearing arrangement
Tandem bearing arrangement
DB:Back-to-back arrangement Designation suffix DB
DF:Designation suffix DB Designation suffix DF (FF)
DT:Tandem arrangement Designation suffix DT (T)
TBT:Back-to-back and tandem arrangement Designation suffix TBT (TD)
TFT:Face-to-face and tandem arrangement Designation suffix TFT (TF)
TT:Tandem arrangement Designation suffix TT (3T)
QBC:Tandem back-to-back arrangement Designation suffix QBC (TDT)
QFC:Tandem face-to-face arrangement Designation suffix QFC (TFT)
QBT:Back-to-back and tandem arrangement Designation suffix QBT (3TD)
QFT:Face-to-face and tandem arrangement Designation suffix QFT (3TF)
QT:Tandem arrangement Designation suffix QT (4T)
