China wire Cable Strander machine use High Speed Bearing 526720
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | GCr15SiMn | Cage Material: | Brass/steel |
|---|---|---|---|
| Clearance: | C1 C2 C0 C3 C4 | Precision Grade: | P5 P6 |
| Application: | Wire Cable Tubular Strander Machine | Feature: | High Rigidity, High Radial Load Carrying Capacity |
| Lubrication: | Oil Lubrication | Oil: | Oil Groove And Oil Hole |
| Original: | LuoYang China | Payment: | T/T .L/C |

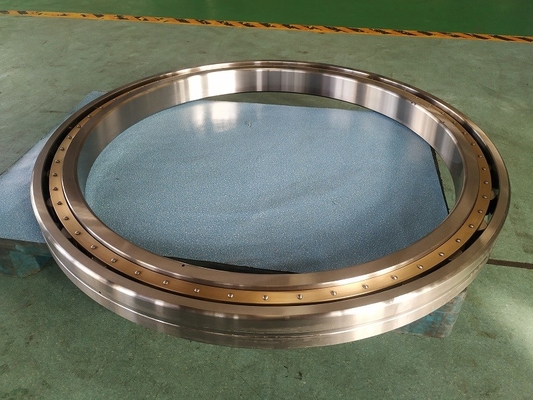

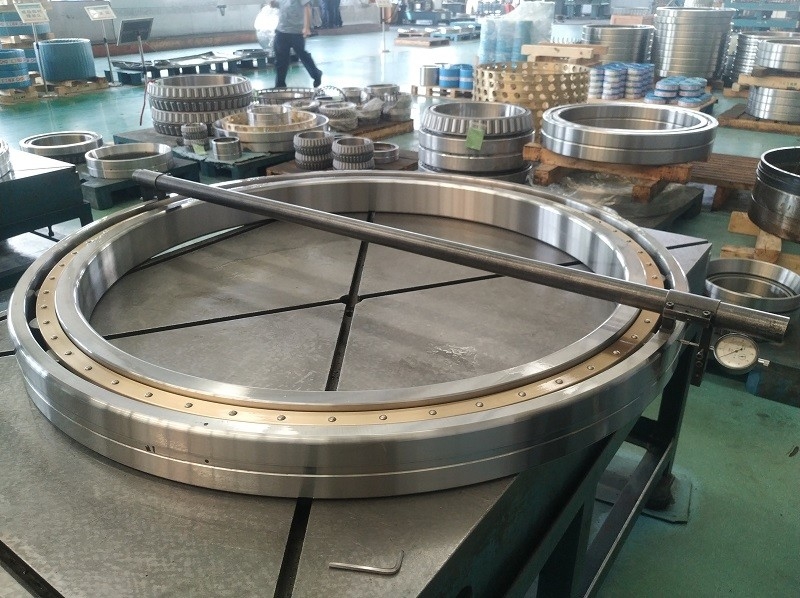

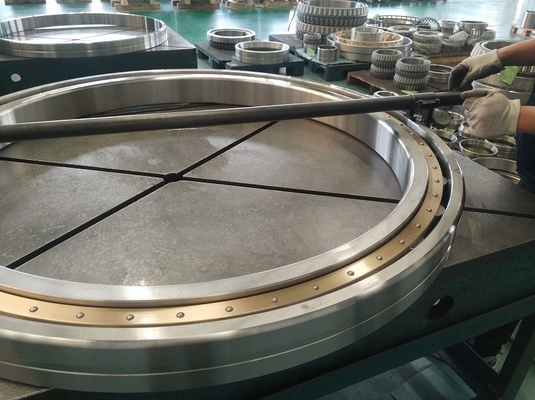

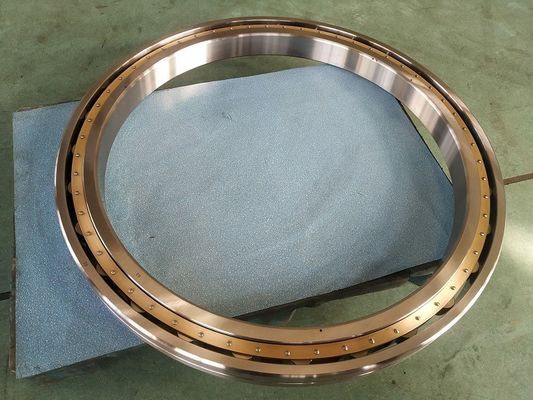

China Wire Cable Strander Machine Use High Speed Bearing 526720
Special bearings 526720 for high speed wire cable tubular stranding machines are of
the type cylindrical roller bearing and have a lubrication groove and three lubrication holes in the outer ring.The high precision bearing 526720 lubrication system with oil lubrication.
the type cylindrical roller bearing and have a lubrication groove and three lubrication holes in the outer ring.The high precision bearing 526720 lubrication system with oil lubrication.
In bearings of Cylindrical Roller Berings the cylindrical rollers are in linear contact with the raceways. They have a high radial load capacity and are suitable for high speeds
The precision roller bearings 526720 for high wire cable speed tubular stranding machines/equipment.
China Bearing old type: 526720 P5
The bearing 526720 precision grade:P5 P6 grade
Bearing boundary Dimension: standard size
Outer Ring material:Steel GCr15SiMn
The cage material:Brass or steel available
Inner Ring material:Steel GCr15SiMn
Cylindrical Roller Berings 526720 Sprecification
Bearing factory model: 526720
Basic dynamic load rating, Radial Cr:1060KN
Basic static load rating, Radial Cor:2160KN
Cage:Steel Cage and Nylon Cage and Brass
Samples:Available
Radial clearance:C1 C2 C3 Gruop available.
Rolling Body:Roller Bearings
Lubrication:Oil or Grease oil hole and oil groove in the outer ring
Cage material:Brass cage
Rolling Body: Roller Bearings
The Number of Rows:Single
Transport Package:Air/Sea; Box+Carton+Pallet
