speical design for Tubular Strander roller Bearing 527249P5

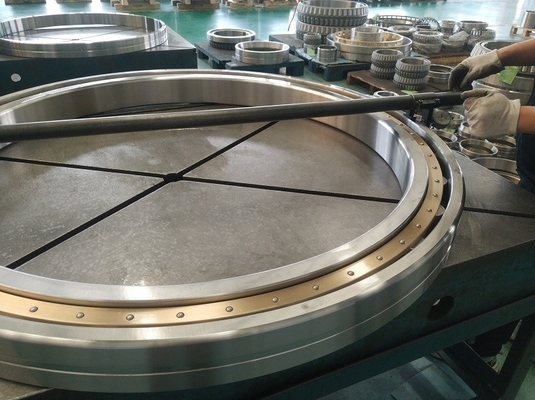

Large Image : speical design for Tubular Strander roller Bearing 527249P5

Product Details:

Place of Origin:	China
Brand Name:	JHB or your required
Certification:	Quality certificate
Model Number:	527249P5

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	1000-10000USD
Packaging Details:	Carton or standard export wooden case
Delivery Time:	60 days
Payment Terms:	T/T,L/C, Western Union
Supply Ability:	1000PCS/MONTH

Contact Now

Detailed Product Description

Material:	GCr15SiMn	Cage Material:	Brass/steel
Clearance:	C1 C2 C0 C3 C4	Precision Grade:	P5 P6
Application:	Wire Cable Tubular Strander Machine	Feature:	High Rigidity, High Radial Load Carrying Capacity
Lubrication:	Oil Lubrication	Oil:	Oil Groove And Oil Hole
Original:	LuoYang China	Payment:	T/T .L/C

Speical Design For Tubular Strander Roller Bearing 527249P5

High precision bearings Z-527249.ZL must guide machine parts with high precision and support forces at up to very high speeds.Large bearings have threaded holes for the location of eye bolts for mounting.

speical design for Tubular Strander roller Bearing 527249P5

Bearing structure:single row cylindrical roller bearing
Single row cylindrical roller bearings, NU seires , N series , NJ series and NUP type
Quality standard:GB307 Rolling bearing technical requirement
Bearing factory model:Z-527249.ZL
China Bearing old type: 527249P5
Bearing boundary Dimension: standard size
ID(inner diameter)/:standard size
OD(outer diameter):standard size
Width/Height/thickness:standard size
MOQ:4PCS
Basic dynamic load rating, Radial Cr:610KN
Basic static load rating, Radial Cor:1250KN
Load Direction:Radial Bearing
Bearing boundary inch size:standard size
Bearing outer diameter inch: standard size
Bearing inner diameter inch size:25.standard size
Bearing height inch:standard size
Weight:60KGS
Outer Ring material:Steel GCr15SiMn
Inner Ring material:Steel GCr15SiMn
Precision grade:P5 P6 grade
Radial clearance:C1 C2 C3 Gruop available.
The bearing working speed:1400rpm
HS code:8482500090
Outer Ring and Inner Ring heat treatment:HRC55-62
Heat Treatment:Bainite heat treatment
Cage material:Brass cage
Trademark:JHB or OEM
The seaport name:Shanghai or Tianjin or qingdao seaport
Lubrication:Oil or Grease oil hole and oil groove in the outer ring
Transport Package Industrial Packing or as Per Requirement.
Mainly Market:America Europe Asia Africa
The bearing application: high speed wire cable steel rope tubular stranding machines
