Special produce for Cylindrical Roller Bearing Z-537025.ZL With Brass Cage

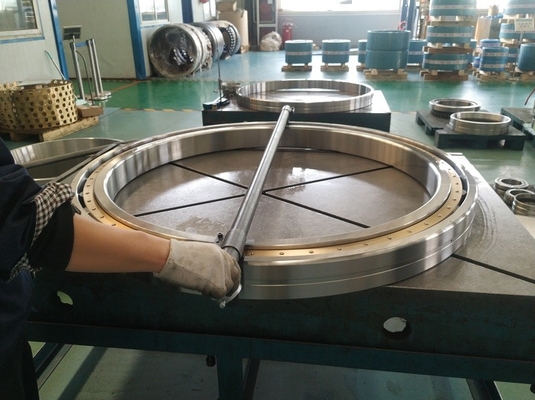

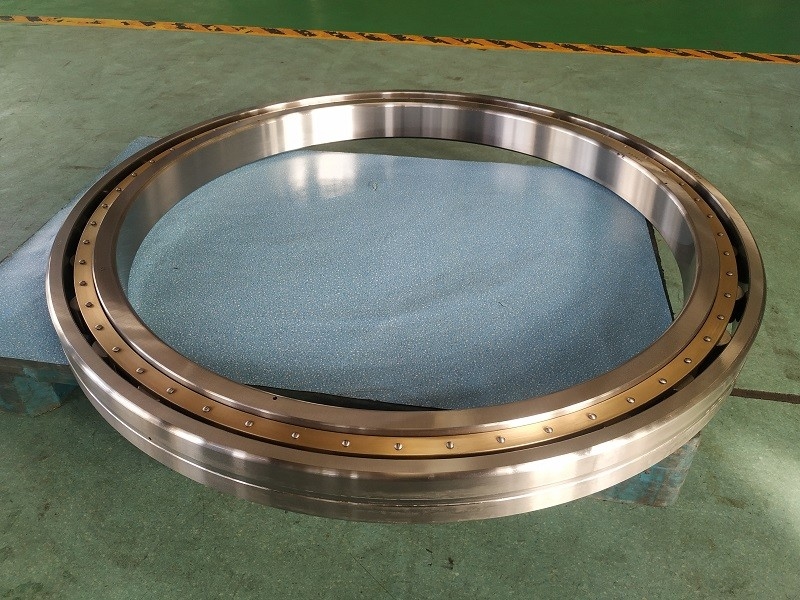

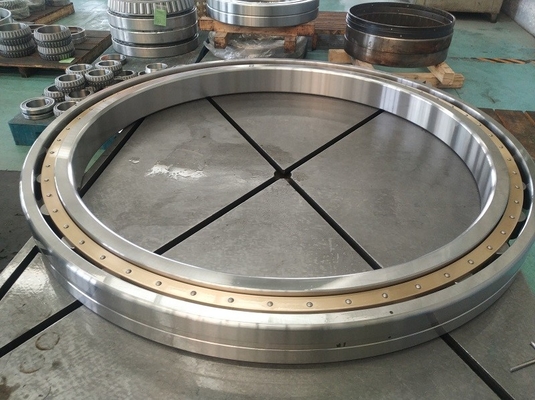

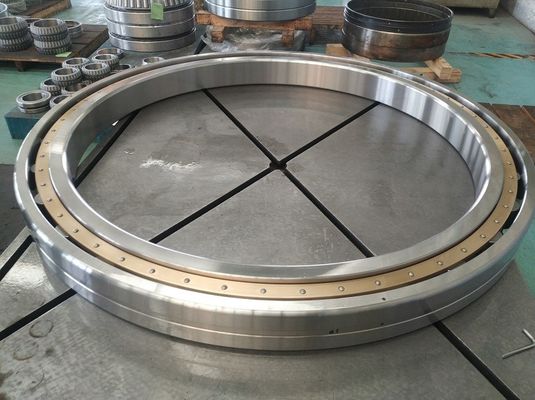

Large Image : Special produce for Cylindrical Roller Bearing Z-537025.ZL With Brass Cage

Product Details:

Place of Origin:	China
Brand Name:	JHB or your required
Certification:	Quality certificate
Model Number:	Z-537025.ZL P5

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	1000-10000USD
Packaging Details:	Carton or standard export wooden case
Delivery Time:	60 days
Payment Terms:	T/T,L/C, Western Union
Supply Ability:	1000PCS/MONTH

Contact Now

Detailed Product Description

Material:	GCr15SiMn	Cage Material:	Brass/steel
Clearance:	C1 C2 C0 C3 C4	Precision Grade:	P5 P6
Application:	Wire Cable Tubular Strander Machine	Feature:	High Rigidity, High Radial Load Carrying Capacity
Lubrication:	Oil Lubrication	Oil:	Oil Groove And Oil Hole
Original:	LuoYang China	Payment:	T/T .L/C

Special Produce For Cylindrical Roller Bearing Z-537025.ZL With Brass Cage

Single row cylindrical roller bearings Z537025ZL with cage are units comprising solid inner and outer rings and cylindrical roller and cage assemblies. Rolling bearings
with cage are available as non-locating, semi-locating and locating bearings.

Special produce for Cylindrical Roller Bearing Z-537025.ZL With Brass Cage

The bearing application: high speed wire cable steel rope tubular stranding machines
Bearing boundary inch size:Standard size
Bearing outer diameter inch: Standard size
Bearing inner diameter inch size:Standard size
Bearing height inch:Standard size
Quality standard:GB307 Rolling bearing technical requirement
Weight:116KGS
Outer Ring material:Steel GCr15SiMn
Inner Ring material:Steel GCr15SiMn
Bearing factory model:Z-537025.ZL
China Bearing old type: 537025 P5
Bearing structure:single row cylindrical roller bearing
Bearing boundary Dimension: Standard size
ID(inner diameter)/:Standard size
OD(outer diameter)Standard size
Width/Height/thickness:Standard size
Precision grade:P5 P6 grade
Radial clearance:C1 C2 C3 Gruop available.
Single row cylindrical roller bearings, NU seires , N series , NJ series and NUP type
The bearing working speed:1300rpm
Basic dynamic load rating, Radial Cr:2400KN
Basic static load rating, Radial Cor:5700KN
MOQ:10PCS
HS code:8482500090
Outer Ring and Inner Ring heat treatment:HRC55-62
Heat Treatment:Bainite heat treatment
