High Speed Working cylindrical Roller Bearing Z-547075.01.ZL brass cage
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | GCr15SiMn | Cage Material: | Brass/steel |
|---|---|---|---|
| Clearance: | C1 C2 C0 C3 C4 | Precision Grade: | P5 P6 |
| Application: | Tubular Strander Machine | Feature: | High Rigidity, High Radial Load Carrying Capacity |
| Lubrication: | Oil Lubrication | Oil: | Oil Groove And Oil Hole |
| Original: | LuoYang China | Payment: | T/T .L/C |

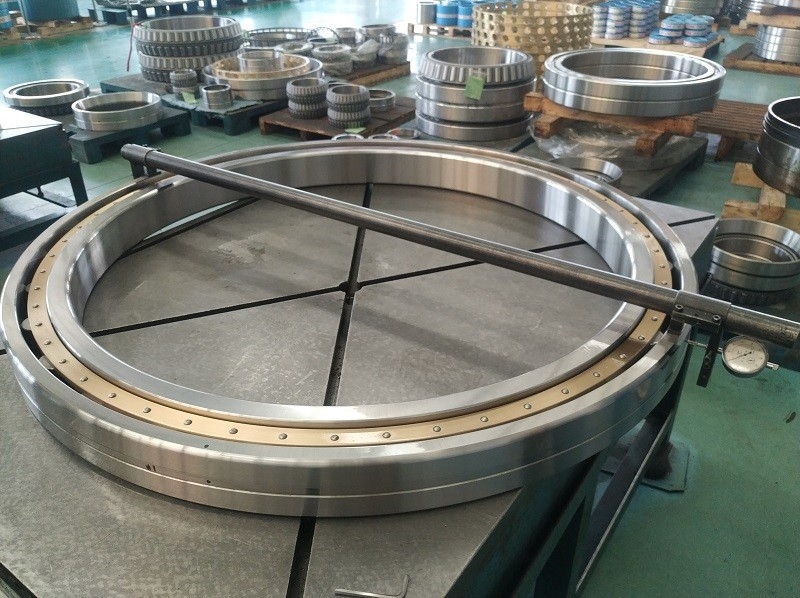

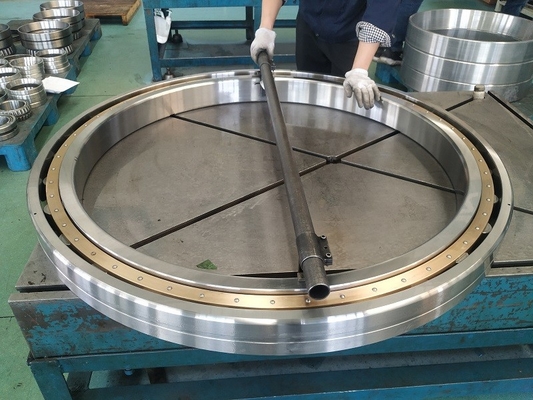

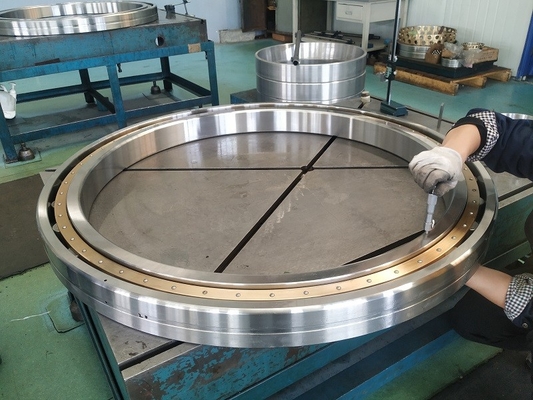

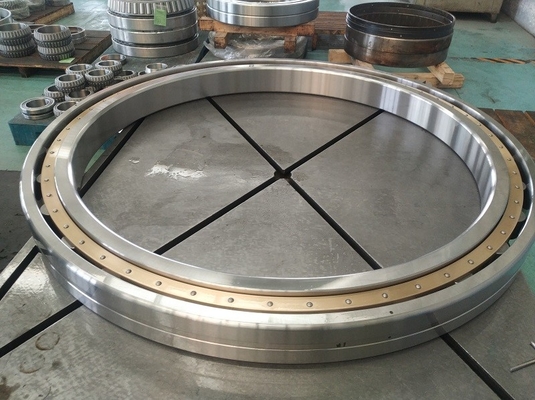

High speed working roller bearing Z-547075.01.ZL
Cylindrical Roller Bearing 547075.01 with high precision and high speed rotating.The radial roller bearing 547075.01 with high precision grade P5 that can meet high speed rotation tubular stranding machine.
Bearing structure:single row cylindrical roller bearing
Bearing factory items:Z-547075.01.ZL
Bearing old type:547075
Bearing boundary metric size: standard size
Bearing outer diameter metric :standard size
Bearing inner diameter metric:standard size
Bearing height metric:standard size
Basic dynamic load rating, Radial Cr:1160KN
Basic static load rating, Radial Cor:2750KN
Bearing weight:32KGS
The bearing manufacture time:60 days
The bearing MOQ:10pcs
Outer Ring material:GCr15SiMn code
Inner Ring material:Steel GCr15SiMn
The special roller bearing 547075 mianly used for high speed strander machine
Bearing boundary inch size:standard size
Bearing outer diameter inch: standard size
Bearing inner diameter inch size:standard size
Bearing height inch:standard size
Cage material:Brass solid cage
Precision grade:P5 P6 Available
Clearance:C3 C0 available
HS code:8482500090
Payment term:T/T or L/C at sight
Shipping term By sea or by air
Package :strong export wooden case
Roller shape:cylindrical roller
Quality standard:GB307 Rolling bearing technical requirement
Inner Bore:cylindrcial bore
The seaport name:Shanghai or Tianjin or qingdao seaport
Bearing brand:JHB or OEM
Quality period: one year
Tubular stranders machine feature:
Quality and experience to obtain unbeatable machines
High capacity machines, fast, reliable and very long-lasting. High quality bearings that allow turning at high turns. Multiple configurations to work with bobbins from Dia. 500 to 900 mm and larger specials according to customer specs for customized solutions.
With automated loading systems, greasing systems inside the tube, binding units for internal layers, back-torsion core mechanisms, etc …
Option to add a larger coil with core element in the head to avoid twisting it (BULL-HEAD)
