offer Non Standard Roller Bearing Z-541924.ZL For Strander Machine
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | GCr15SiMn | Cage Material: | Brass/steel |
|---|---|---|---|
| Clearance: | C1 C2 C0 C3 C4 | Precision Grade: | P5 P6 |
| Application: | Tubular Strander Machine | Feature: | High Rigidity, High Radial Load Carrying Capacity |
| Lubrication: | Oil Lubrication | Oil: | Oil Groove And Oil Hole |

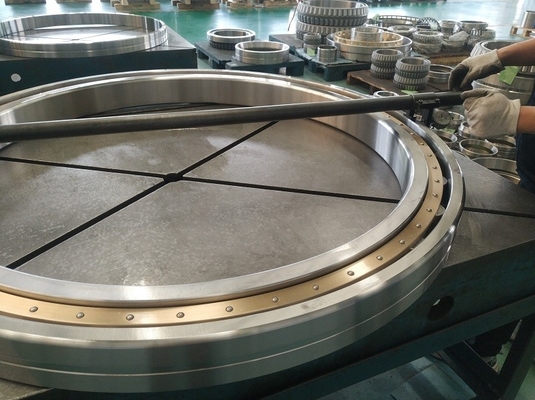

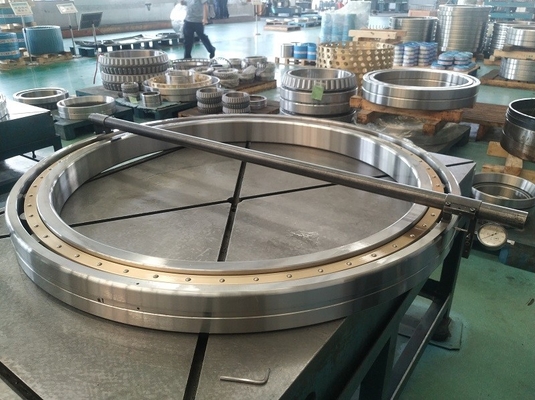

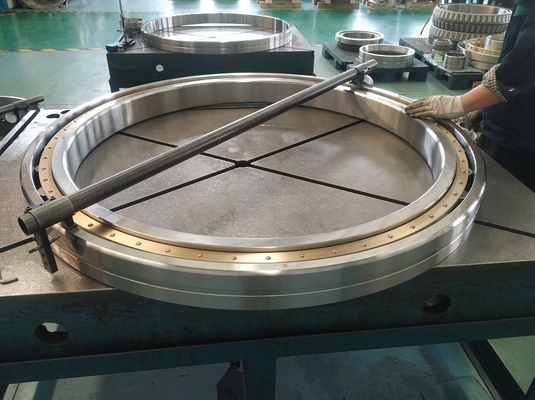

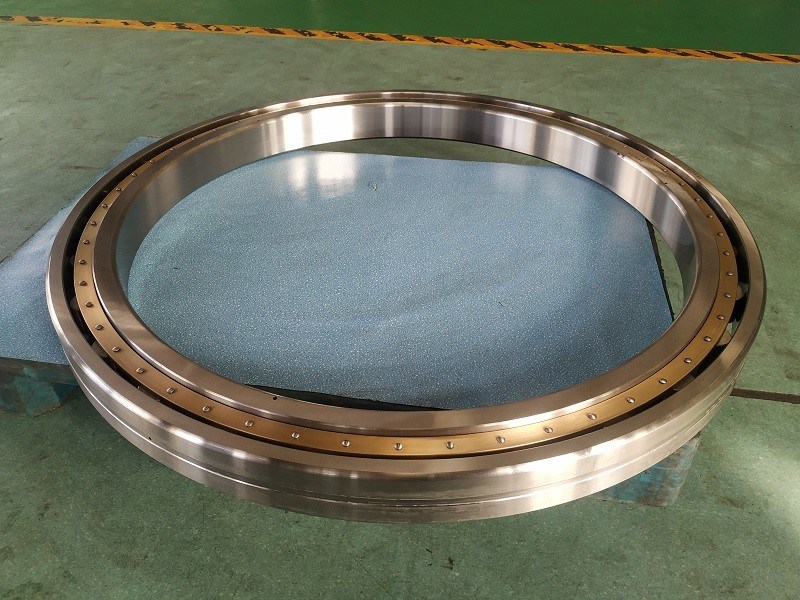

Non standard roller bearing Z-541924.ZL for strander machine
The special cylindrical roller bearings Z-541924.ZL with cage are units comprising solid inner and outer rings and cylindrical roller and cage assemblies. The outer rings have rigid ribs on both sides or no ribs,the inner rings have one or two rigid ribs or are designed without ribs. The cage prevents the cylindrical rollers from coming into contact with each other during rolling.
Bearing items: Z-541924.ZL
Factory Bearing old type: Z-541924.ZL
Bearing another item: 541924
Bearing boundary metric size:standard size
Bearing outer diameter metric :standard size
Bearing inner diameter metric::standard size
Bearing height metric::standard size
Ring material: steel GCr15SiMn
Heat treatment:HR55-HRC62
Bearing boundary inch size:standard size
Bearing outer diameter inch: standard size
Bearing inner diameter inch size:standard size
Bearing height inch:standard size
Rolling Body:Roller Bearings
Separated:Outer ring and inner ring with roller and cage
Roller structure:Cylindrical roller with directly line
Cage material:Brass material cage
Cage structure:Solid structure
Trademark:OEM or JHB
Basic dynamic load rating, Radial Cr:106KN
Basic static load rating, Radial Cor:176KN
Limited speed:3800RPM
HS Code:8482100050
The bearing Z-549124.ZL application: wire/cable Tubular Stranding equipment.
