Wire Strander Tubular Cylindrical Roller Bearing 548410 Price

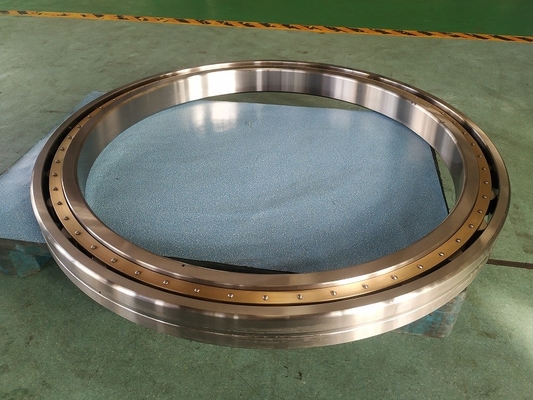

Large Image : Wire Strander Tubular Cylindrical Roller Bearing 548410 Price

Product Details:

Place of Origin:	China
Brand Name:	JHB or your required
Certification:	Quality certificate
Model Number:	548410 P5

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	1000-10000USD
Packaging Details:	Carton or standard export wooden case
Delivery Time:	60 days
Payment Terms:	T/T,L/C, Western Union
Supply Ability:	1000PCS/MONTH

Contact Now

Detailed Product Description

Material:	GCr15SiMn	Cage Material:	Brass/steel
Clearance:	C1 C2 C0 C3 C4	Precision Grade:	P5 P6
Application:	Tubular Strander Machine	Feature:	High Rigidity, High Radial Load Carrying Capacity

Wire strander cylindrical roller bearing 548410

The cylindrical roller bearings Z-548410.ZL have high rigidity, high radial load carrying capacity and, due to the cage, are suitable for higher speeds than full complement designs. Bearings with the suffix E havea higher capacity roller set and are thus designed for very high load carrying capacity.High precision bearings Z548410ZL must guide machine parts with high precision and support forces at up to very high speeds.

Wire Strander Tubular Cylindrical Roller Bearing 548410 Price

Factory Bearing items: Z-548410.ZL

Bearing old type:548410

Bearing boundary size:Standard size

Bearing outer diameter:standard size

Bearing inner diameter:standard size

Bearing height :standard size

Ring material: steel GCr15SiMn

Roller material:steel GCr15

Cage material:Brass material cage

Internal structure: Single row cylindrical roller bearing

Row number: one row

Rolling: Roller

Basic dynamic load rating, Radial Cr:2240KN

Basic static load rating, Radial Cor:3600KN

Special bearings 546293 for tubular stranding machines running at high speeds have increased accuracy to tolerance class P6 or P5.we had manufactured the tubular stranding bearing at least 15 years, So if you have any technology issue, Please contact us.
