7038AC main spindle ball bearing for CNC boring lathe in stock
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | GCr15SiMn | Cage Material: | Nylon Or Brass |
|---|---|---|---|
| Precision Grade: | P4 Grade | Application: | CNC Machine Tool |
| Service: | Offer Drawing And Calcuation | Sample: | Offer Sample Available |

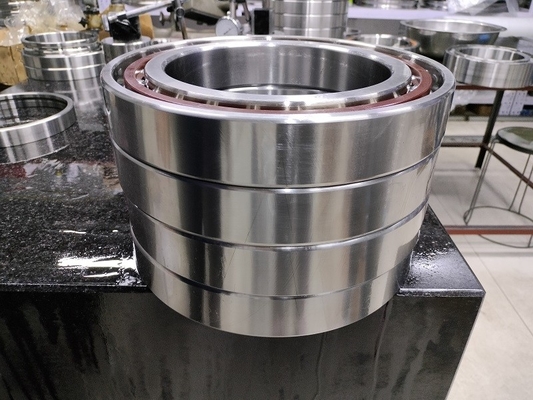

7038AC main spindle ball bearing for CNC boring lathe in stock
The machine tool spindle ball bearing 7038C AC details as following:
| Bearing type | 7038C,7038AC |
| Bearing boundary size | 190*290*46mm |
| Outer diameter | 290mm |
| Inner diameter | 190mm |
| height | 46mm |
| Contact Angle: | C=15 degree,AC=25 degree |
| Mounting Configuration: |
SU: Single Universal DU: Duplex Universal DB, DF, DT: Duplex Arrangement DBD, DFD, DTD, DUD: Triplex Arrangement DBB, DFF, DBT, DFT, DTT, QU: Quad Arrangement |
| Preload: |
L: Light M: Medium H: Heavy |
| Precision Class | P4: ISO Class 4 (ABEC7) |
| Application | CNC boring lathe KBN135C main spindle bearing |
| HS code | 84821090.00 |
| Package | Wooden case/carton |
| Delivery time | In stock |
| Sample | Offer sample available |
| Macthed bearing type | NN3038KP4 roller bearing |
SU= Single Universal Bearing
DU= Duplex Universal Bearing
DUD = Triplex Universal Bearing
QU= Quadruplex Universal Bearing
EL=Extra light – fastest speed, less rigidity
L=Light – slightly higher rigidity
M=Medium – lower speed, good rigidity
H=Heavy – highest rigidity, lowest speed
