Cylindrical roller bearing NU2264MAW33 320x580x150 mm for main shaft

Large Image : Cylindrical roller bearing NU2264MAW33 320x580x150 mm for main shaft

Product Details:

Place of Origin:	China
Brand Name:	JHB Or OEM
Certification:	Quatliy certificate
Model Number:	NU2264MAW33

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	USD1000
Packaging Details:	Strong wooden case
Delivery Time:	25 DAYS
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Material:	GCr15SiMn	Delivery Time:	25 Days
Quality Period:	1 Year	Precision:	P5 P6 Grade

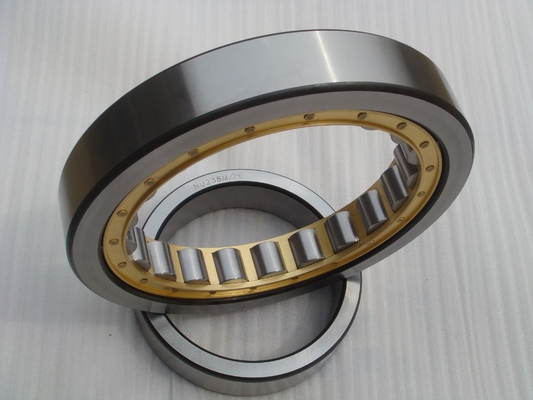

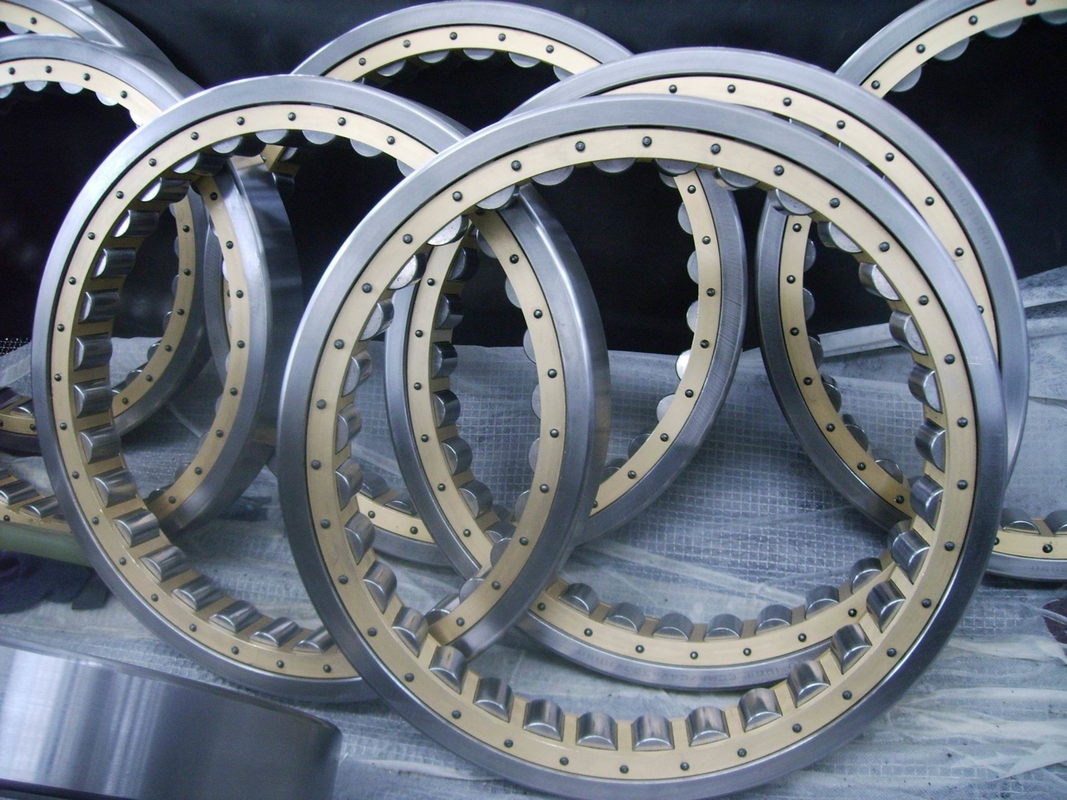

Cylindrical roller bearing NU2264MAW33 320x580x150 mm for main shaft

cylindrical roller bearing NU2264 has additional radial load-carrying capability compared to single row cylindrical roller bearing.It designed to ISO Specified interchangeable dimensions. Sold as complete assembly.

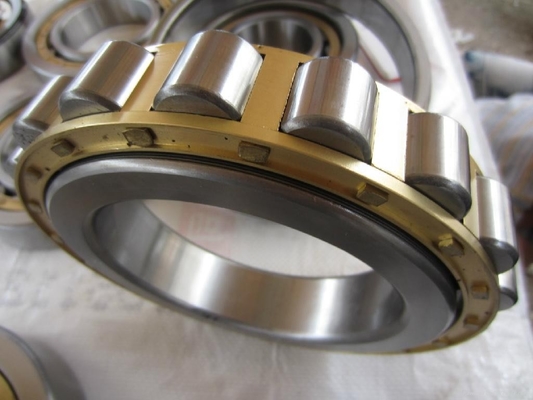

The cylindrical roller bearings NU2264MAW33 has outer rings with solid ribs and lubrications grooves and holes on outer rings, one solid brass cage ,one inner ring.

The NU2264 cylindrical roller bearing description as follows:

Name	cylindrical roller bearing NU2264MAW33
Bearing type	NU2264MAW33
Dimension	320x580x150 mm
ID(inner diameter)/Bore	320 mm
OD(outer diameter)	580 mm
Width/Height/thickness	150 mm
Weight	180KGS
Delivery time	In stock, If ex-stock, the manufacture time about 15-20 days
package	Standard export wooden case
Quality standard	I S O 2 4 6/ GB/T 283
Material	GCr15 GCr15SiMn
HS Code	8482500090

The inner ring and outer ring material:GCr15SiMn

The cage material:brass material

The package: standard export wooden case or carton boxes.

The delivery time:25 -30 days after getting the order

Service:offer design and assembly guide

JinHang Precision Bearing mainly export precision cylindrical roller bearing NU2264MAW33 Bearing and relative products, we have huge stocks for NU2264MAW33 bearing and relative items, Also if ex-stock, the best deliver time about 15-20 days. we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in NU2264MAW33 Bearing, please email us :lyjh@lyjhbearing.com so we will contact you directly. Thanks for your trust!
