Crossed roller bearing RA8008,80X96X8mm,in stock

Crossed roller bearing RA8008 Belongs to Model RA Separable outer   ring type for inner ring rotation.  Based on model RB,this model is a light and compact type with the thinnest possible inner and outer rings,It is optimal for locations where weight reduction and downsizing are required,such as the hand swiveling unit of robots and manipulators.

Name: RA8008 Bearing or RA8008 roller bearing or RA8008 Crossed roller bearing, The bearing RA8008 shaft diameter:80 mm,

Dimension(dxDxB):80X96X8 MM

Inner diameter (d):80mm

Outer diameter(D): 96 mm

Width(B):8 mm

Weight:0.11 kgs

Radial Basic load rating: C: 6.3  KN, Co:11.3   KN

Precision grade:  P2 P4 P5 class

Material:GCr15,GCr15SiMn

Delivery time: in stock, after getting the order, within 2 days will send the customer,If ex-stock,it will need 30-40 days.

Shipping term: By DHL or UPS or Fedex or TNT or customer required.

Crossed roller bearing RA8008 application such as joints and swiveling units of industrial robots,swiveling table of machining centers,rotary units of manipulators, precison rotary table, medical equipment,meansuring instruments and IC manufacturing machines.

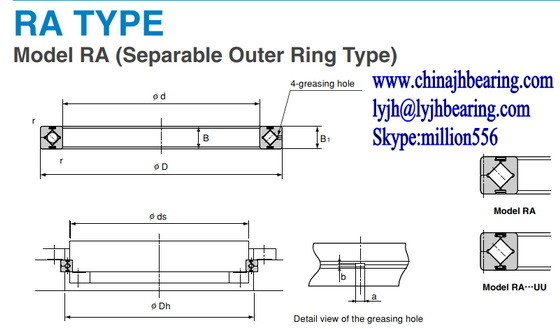

Crossed roller bearing RA8008  rough drawing as following:
