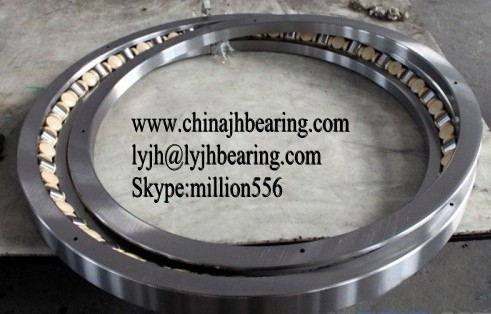

To order Crossed roller bearing RE12016,120X150X16 MM

Crossed roller bearing RE12016 Belongs to Model RE Separable inner  ring type for outer ring rotation. Having the same major dimensons as model RB,this model is used in locations where the roatation accuracy of the outer ring is required. The structure including inner ring ,outer ing,roller and spacer retainer.

Name: RE12016 Bearing or RE12016 roller bearing or RE12016 Crossed roller bearing, The bearing RE12016 shaft diameter:120 mm,

Dimension(dxDxB):120X150X16 MM

Inner diameter (d):120mm

Outer diameter(D):150 mm

Width(B):16mm

Weight:0.72 kgs

Radial Basic load rating: C:24  KN, Co:43  KN

Precision grade: P2 P4 P5 class

Material:GCr15,GCr15SiMn

Delivery time: in stock, after getting the order, within 2 days will send the customer,If ex-stock,it will need 30-40 days.

Shipping term: By DHL or UPS or Fedex or TNT or customer required.

Crossed roller bearing RE12016 application such as joints and swiveling units of industrial robots,swiveling table of machining centers,rotary units of manipulators, precison rotary table, medical equipment,meansuring instruments and IC manufacturing machines.

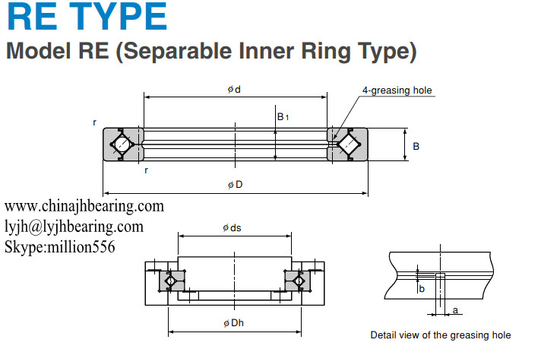

Crossed roller bearing RE12016  rough drawing as following:
