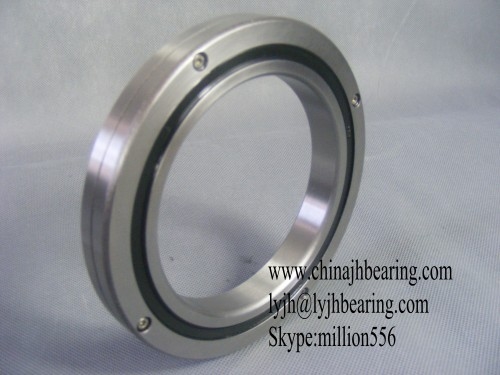

JinHang precision bearing order RE7013 bearing 70X100X13 MM,in stock

 Crossed roller bearing RE7013 Belongs to Model RE Separable inner  ring type for outer ring rotation. Having the same major dimensons as model RB,this model is used in locations where the roatation accuracy of the outer ring is required. The structure including inner ring ,outer ing,roller and spacer retainer.

Name: RE7013 Bearing or RE7013 roller bearing or RE7013 Crossed roller bearing, The bearing RE7013 shaft diameter:70 mm,

Dimension(dxDxB):70X100X13 MM

Inner diameter (d):70mm

Outer diameter(D):100 mm

Width(B):13mm

Weight:0.35 kgs

Radial Basic load rating: C:19.4 KN, Co:27.7  KN

Precision grade: P2 P4 P5 class

Material:GCr15,GCr15SiMn

Delivery time: in stock, after getting the order, within 2 days will send the customer,If ex-stock,it will need 30-40 days.

Shipping term: By DHL or UPS or Fedex or TNT or customer required.

Crossed roller bearing RE7013 application such as joints and swiveling units of industrial robots,swiveling table of machining centers,rotary units of manipulators, precison rotary table, medical equipment,meansuring instruments and IC manufacturing machines.

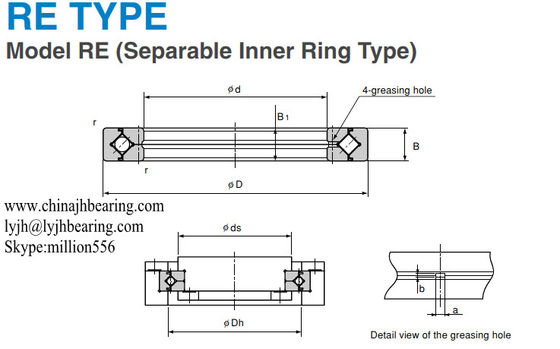

Crossed roller bearing RE7013  rough drawing as following:
