RE2508 Bearing,RE2508 roller bearing 25X41X8 MM,in stock

 Crossed roller bearing RE2508 Belongs to Model RE Separable inner  ring type for outer ring rotation. Having the same major dimensons as model RB,this model is used in locations where the roatation accuracy of the outer ring is required. The structure including inner ring ,outer ing,roller and spacer retainer.

Name: RE2508 Bearing or RE2508 roller bearing or RE2508 Crossed roller bearing, The bearing RE2508 shaft diameter:25 mm,

Dimension(dxDxB):25X41X8 MM

Inner diameter (d)25mm

Outer diameter(D):41 mm

Width(B):8mm

Weight:0.05 kgs

Radial Basic load rating: C:3.63 KN, Co:3.83  KN

Precision grade: P2 P4 P5 class

Material:GCr15,GCr15SiMn

Delivery time: in stock, after getting the order, within 2 days will send the customer,If ex-stock,it will need 30-40 days.

Shipping term: By DHL or UPS or Fedex or TNT or customer required.

Crossed roller bearing RE2508 application such as joints and swiveling units of industrial robots,swiveling table of machining centers,rotary units of manipulators, precison rotary table, medical equipment,meansuring instruments and IC manufacturing machines.

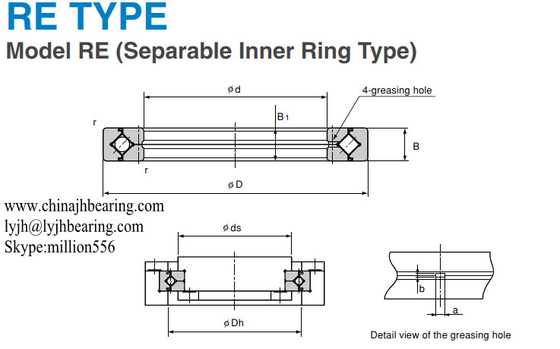

Crossed roller bearing RE2008   rough drawing as following:
