THK Bearing Crossed roller bearing RB4010,RB4010 Bearing size:40X65X10MM,p5 Grade

 Crossed roller bearing RB4010 Belongs to Model RB Separable outer ring type for inner ring rotation.Being the basic model of the cross roller ring,its outer ring is separable while the inner ring is integrated with the main body.This model is used in locations where the rotation accuracy of the inner ring is required,Major applications include the index table swiveling unit or machine tools.

Name: RB4010  Bearing or RB4010 roller bearing or RB4010 Crossed roller bearing, The bearing RB4010  shaft diameter:40 mm,

Dimension(dxDxB):40X65X10MM

Inner diameter (d):40mm

Outer diameter(D):65mm

Width(B):10mm

Weight:0.16 kgs

Radial Basic load rating: C:8.33 KN,Co:10.6 KN

Precision grade: P2 P4 P5 class

Material:GCr15,GCr15SiMn

Delivery time: in stock, after getting the order, within 2 days will send the customer

Shipping term: By DHL or UPS or Fedex or TNT or customer required.

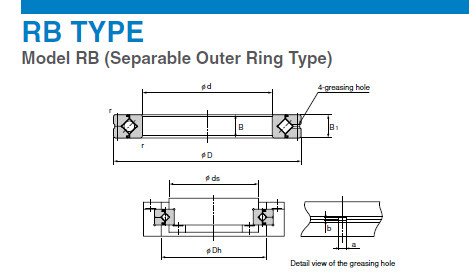

The bearing RB4010  profile as following:
