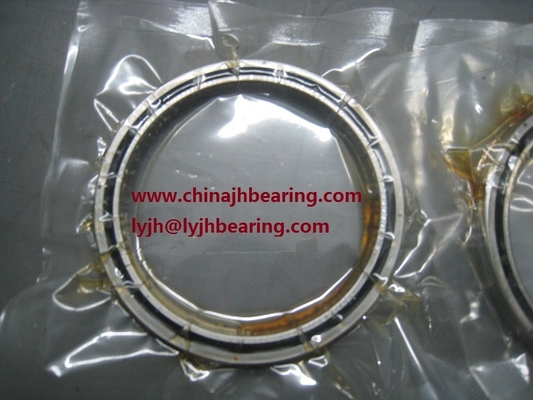

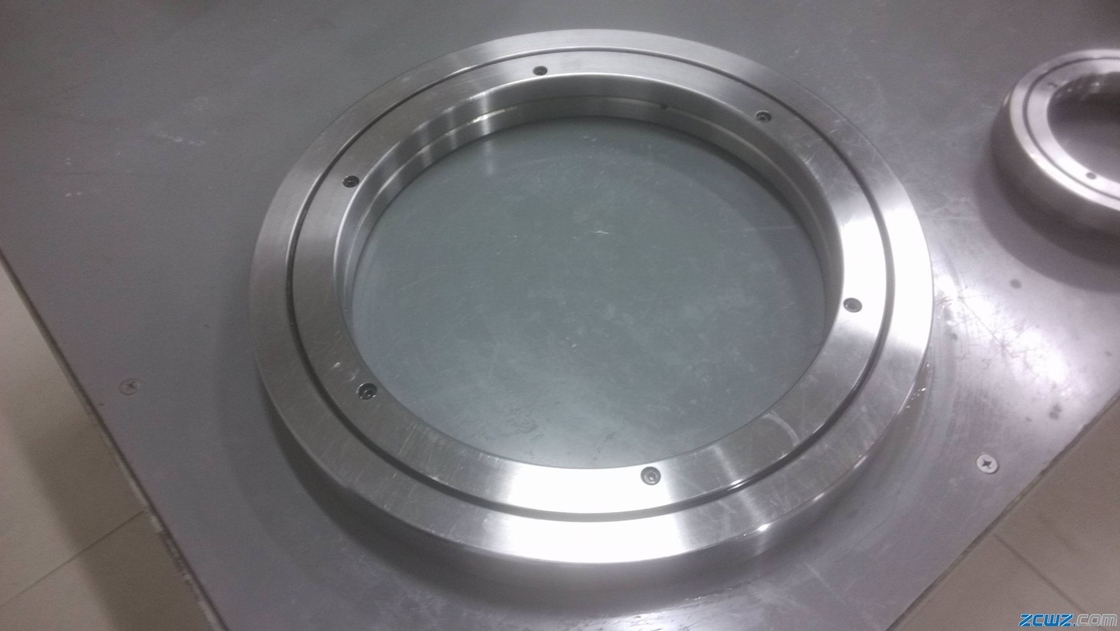

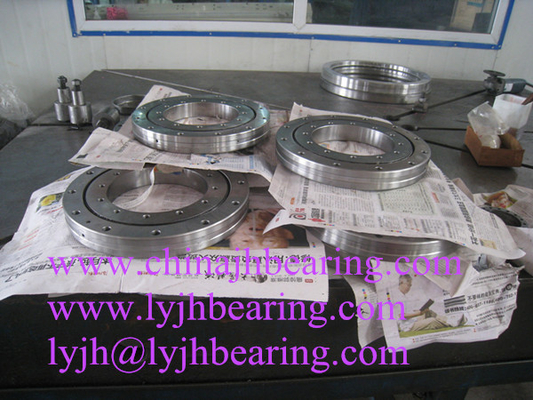

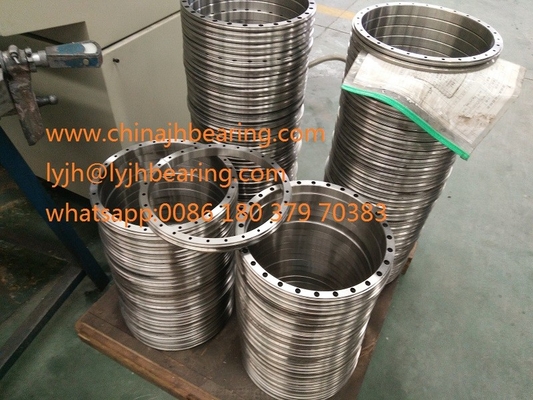

Crossed roller bearing RU228G Belongs to Model RU integrated inner/outer ring type, the mounting holes are provided, this model doesn’t require a presser flange or housing. In addition,because it has an integrated inner/outer ring structure and is equipped with washers ,Its performance is minimally affected by the mounting procedure, ensuring stable rotation accuracy and torque. This model can be used for both inner-ring rotation and outer-ring rotation.
Name: RU228G Bearing or RU228G roller bearing or RU228G Crossed roller bearing, The bearing RU228G shaft diameter:160 mm,
Dimension(dxDxB):160X295X35MM
Inner diameter (d):160mm
Outer diameter(D):295mm
Width(B):35mm
Weight:11.4 kgs
Radial Basic load rating: C:104 KN,Co:173 KN
Precision grade: P2 P4 P5 class
Material:GCr15,GCr15SiMn
Delivery time: in stock, after getting the order, within 2 days will send the customer
Shipping term: By DHL or UPS or Fedex or TNT or customer required.
If you want to know more, please contact us as follows:
JinHang Precision Bearing Co.,Ltd
www.chinajhbearing.com
www.lyjhbearing.com
Address: Yiyang Bearing Industry Zone, Luoyang City, China 47100
