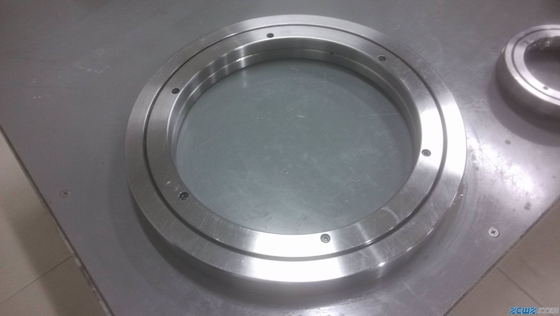

Crossed roller bearing RU178G Belongs to Model RU integrated inner/outer ring type, the mounting holes are provided, this model doesn’t require a presser flange or housing. In addition,because it has an integrated inner/outer ring structure and is equipped with washers,Its performance is minimally affected by the mounting procedure, ensuring stable rotation accuracy and torque. This model can be used for both inner-ring rotation and outer-ring rotation.
Name: RU178G Bearing or RU178G roller bearing or RU178G Crossed roller bearing, The bearing RU178G shaft diameter:115 mm,
Dimension(dxDxB):115X240X28MM
Inner diameter (d):115mm
Outer diameter(D):240mm
Width(B):28mm
Weight:6.8 kgs
Radial Basic load rating: C:80.3 KN,Co:135 KN
UU:with seal attached on both sides
U:with seal attached on one side
CCO:negative clearance
CO:positive clearance
C1:positive clearance(greater than CO)
Grade: No Symbol normal grade 0
USP:USP grade rotation accuracy
The delivery time: in stock ,if ex-stock,It will need 20 days

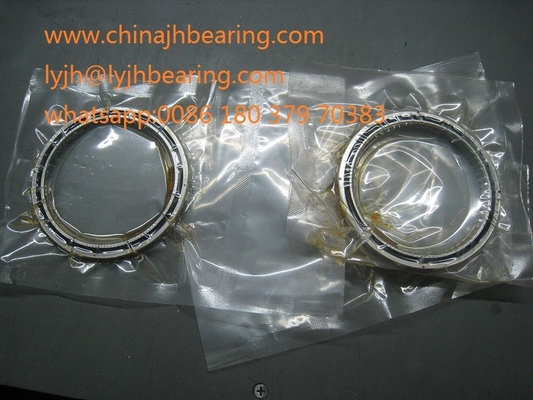

The package:vacuum packing and carton
Precision grade: P2 P4 P5 class
Material:GCr15,GCr15SiMn
Delivery time: in stock, after getting the order, within 2 days will send the customer
Shipping term: By DHL or UPS or Fedex or TNT or customer required.
