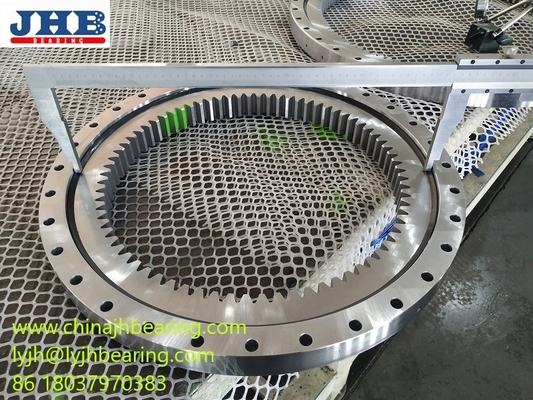

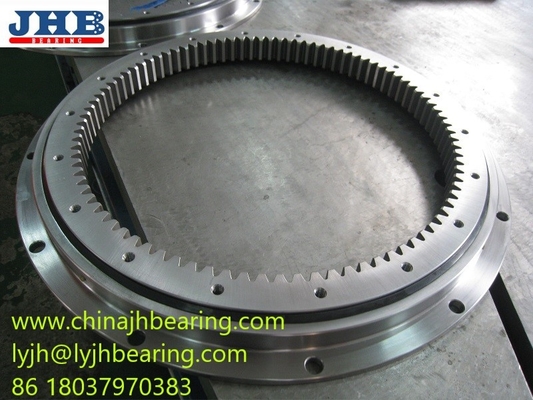

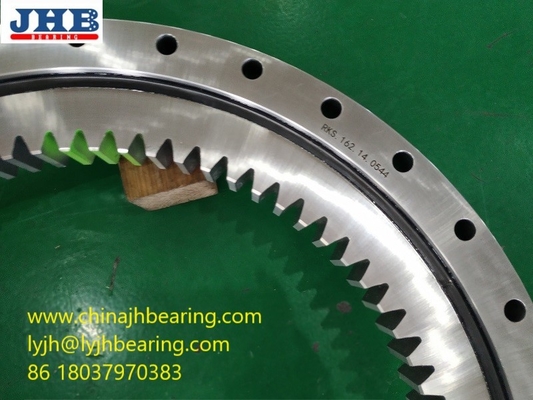

Large Size RKS.162.16.1424 Slewing Bearing With Gear 1292x1509x68 mm For Machinery

Large Size RKS.162.16.1424 Slewing Bearing With Gear 1292x1509x68 mm For Machinery

RKS.162.16.1424   code    Single row crossed cylindrical roller slewing bearing

Dimensions - d (inside diameter) 1292 mm

Dimensions - D (outside diameter)1509  mm

Dimensions - B (width) 68 mm

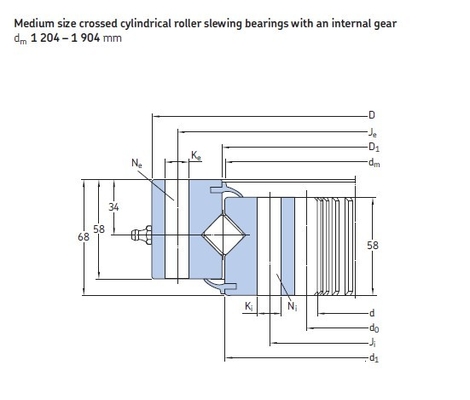

RKS.162.16.1424  Single row crossed cylindrical roller slewing bearings are simple in design, consisting of a one-piece inner and outer ring and cylindrical rollers separated by polyamide spacers and generally protected by integral seals.

RKS.162.16.1424    The outer ring and inner ring material: 42CrMo, 42CrMo4V,50Mn in accordance with EN10083
Roller material: 100Cr6 bearing steel,in accordance with EN ISO683
Geart teeth accuracy grade: in accordance with ISO1328
Oil or grease material:Lithium grease
The inner ring and outer ring Material  hardness: quenching and tempering: HB229~269
Raceway case hardening :HRC55~62
RKS.162.16.1424   The package,: Inside packaging: plastic film + kraft paper + blue tape; Outside packaging: standard export free-fumigation wooden case. we can assure that the bearing shipping by sea or by air.
The delivery time:25-35 days

Generally,  RKS.162.16.1424  slewing bearings are large-size rolling bearings that can accommodate axial, radial and moment loads acting either singly or in combination and in any direction. They can perform both slewing (oscillating) movements as well as rotational movements.
Basically,RKS.162.16.1424  slewing bearing consists of an inner ring , an outer ring and rolling elements−balls or cylindrical rollers−that are separated by polyamide spacers .The rings, one of which usually incorporates a gear , are provided with holes to accommodate attachment bolts. The holes may be threaded.

Single row four point contact ball slewing bearing.
It is composed of two seat rings. It has compact structure, light weight, and four-point contact between steel ball and arc raceway. It can bear axial force, radial force and overturning moment at the same time. The construction machinery of rotary conveyor, welding manipulator, small and medium-sized crane and excavator can be selected.

Slewing bearing surface treatment :
1.polishing treatment
2.galvanizing processing
3.phosphating treatment
4.Coating treatment

Generally, only the raceways in the rings are hardened and precision- ground. Integral seals  made of acrylonitrile- butadiene rubber (NBR) keep the lubricant in, and contaminants out of the bearing.

RKS.162.16.1424 Slewing bearings perform extremely well in a variety of applications such as:
• access platforms
• bucket wheel excavators
• conveyor booms
• cranes of all types
• small, medium and large excavators
• indexing tables
• ladle turrets
• offshore applications
• robots
• railway bogies
• rotary platforms
• stackers
• solar mirrors
• tunnel boring machines
• wind turbines

We JINHANG Precision bearing are a professional
Precision bearing manufacturer in the world, established in 2005, specializing in slewing bearings, slewing drives,rotary table bearing,crossed roller bearing,cylindrical roller bearing,tapered roller bearing,spherical roller bearing,thrust roller bearing thrust ball bearing,tandem bearing,pinion and other special machine parts, with design, production, sales, marketing and service all over the world. For the high precision bearing,our precision grade can reach to P5 P4 P2 class.

Our team advantage:
We have 70 employees, with 10 experienced engineers and professional technicists. The most of Engineer from LYC and ZWZ brand factory, they had owned produce and design and after sales experienced to design the bearing.We can also design the drawing according to the bearing work condition to meet the customer requirement.

Manufacturing ability:
Equipped with advanced manufacturing CNC Machine and test instruments to insure the accurate tolerance , all bearings are of uniform marking and packing with superior quality, reasonable prices and perfect services. Meanwhile we can make the module to test the mounting hole.
