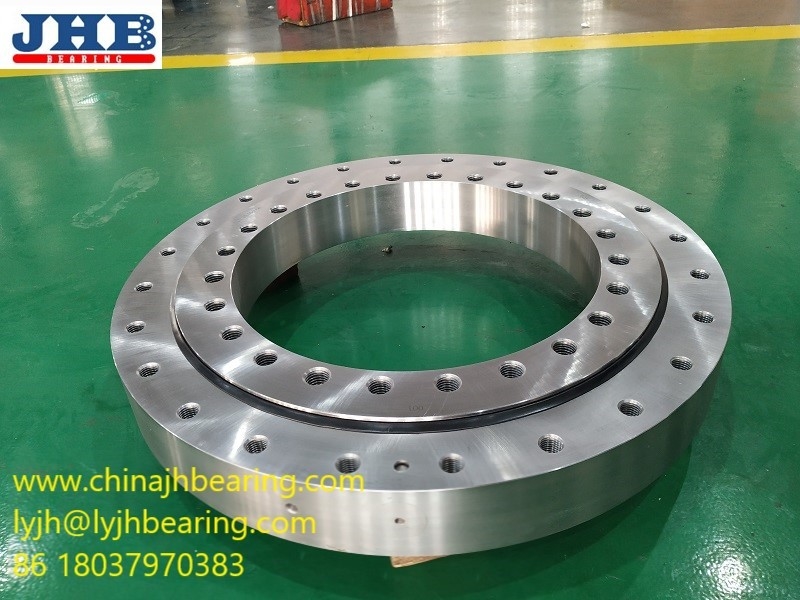

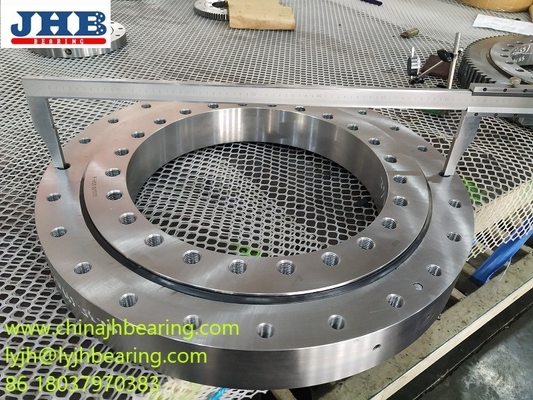

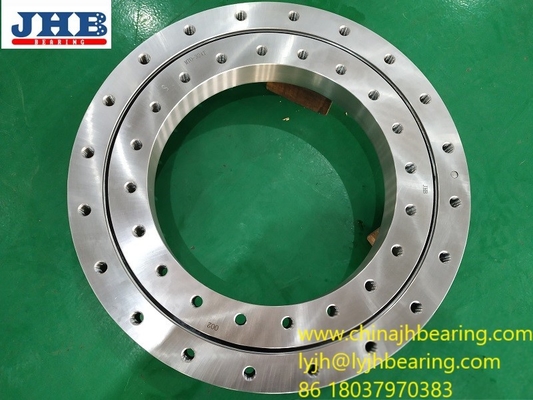

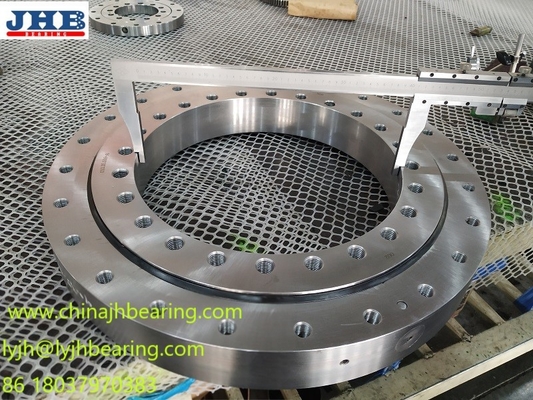

91-32 0955/1-06115 slewing ball bearing 805x1096.2x90mm with flange ring

91-32 0955/1-06115 slewing ball bearing 805x1096.2x90mm with flange ring

We/JinHang Precision bearing Co.,LTD can manufacutre the large-size slewing bearing,

The slewing bearing structure including signel row four point contact ball slewing bearing, doulbe row four point contact ball slewing bearing, double row different diameter ball slewing bearing, ball and roller combined slewing bearing and tri-row cylindrical roller combined slewing bearing etc. Above mentioned slewing bearings can also be divided into different structures of no gear type, external gear type and internal gear type as per if exist gear and gear teeth distributing position. Also we can accept the customer’s required technical data.

 IMO slewing bearing Series 932 standard bearing type 91-32 0955/1-06115  Four point contact ball slewing bearing with external teeth description as following:

• Bearing type: 91-32 0955/1-06115 bearing, 91-32 0955/1-06115 slewing bearing,
•             91-32 0955/1-06115  slewing ring, 91-32 0955/1-06115  turntable bearing
• Structure:four  point contact ball slewing bearing with external gear
• Brand Name: JHB or OEM Required
• Dimension:805x1096.2x90mm
• Bore Size: 805 mm metric size
• Outside Diameter:1096.2 mm metric size
• Height:90 mm metric size
• Teeth Options: with  teeth/gear
• Seals Type: double lip seal
• Lubrication:grease
• Bearing mark: Brand+91-32 0955/1-06115 Or your requirement
• Place of Origin: LuoYang, China (Mainland)
• Delivery Time: 20-30 days
• Sample:available
• Material: 50Mn,42CrMo
• The package: Inside packaging: plastic film + kraft paper + blue tape; Outside packaging: standard export free-fumigation wooden case
• Payment: T/T or L/C or Western Union
• 91-32 0955/1-06115 bearing gearing/teeth specification:
• Pictch diamameter(do):1080mm
• Module:9mm
• Number of teeth:120

91-32 0955/1-06115 slewing bearing Specifications

1. High precision: P5,P6,P0
2. Low noise
3. Long serive life
4. short delivery time

5. OEM service provided

6. Processing with supplied drawings

The bearing  91-32 0955/1-06115  bearing dimension, 91-32 0955/1-06115 slewing bearing supplier, 91-32 0955/1-06115 slewing ring price, 91-32 0955/1-06115 turntable bearing manufacture dimension and rough drawing as follows:

The bearing   91-32 0955/1-06115  slewing bearing shipping term:TNT,FEDEX,DHL UPS Express or by sea  or by air or your rquired

 JinHang Precision Bearing mainly  export high quantities  91-32 0955/1-06115 , Slewing Bearing and relative products, we  had owned advanced CNC Machine to manufacture  them.From the forging material to Bearing assembly ,we had performance ISO Quality system. Every process, we had make the note and keep them. Also, our engineer can supply the technolgoy communication and guide. If you want to know the 91-32 0955/1-06115 Slewing ring more, Please contact us as follow,Thanks for your trust!

Bearing Parts
Steel ball/Roller:carbon-chromium bearing steel GCr15SiMn or GCr15 for rolling Material
Cage: include integral cage, segment cage and spacer-type cage. We use 20# steel or copper for integral and segment cages, PA 1010 resin or QA110-3-105 albronze for spacer-type cages.
Seals:uses NBR or VITON, few felted wool.

Single row four point contact ball slewing bearing.
It is composed of two seat rings. It has compact structure, light weight, and four-point contact between steel ball and arc raceway. It can bear axial force, radial force and overturning moment at the same time. The construction machinery of rotary conveyor, welding manipulator, small and medium-sized crane and excavator can be selected.

Forging process:
The blanks of bearing rings are mainly made of rods and tubes, while the forging process is only applicable to rods. However, forgings are the most used blank materials in bearing manufacturing, and are suitable for large and medium-sized bearings. Forging can be divided into hot forging, cold forging and warm forging. Hot forging refers to processing above the re-crystallization temperature of the billet metal, warm forging is forging at a temperature not exceeding the re-crystallization temperature, and cold forging refers to forging at normal temperature.

The purpose of ferrule forging: 1. Through forging, obtain a blank with a size similar to the product, improve the utilization of metal materials, reduce the amount of machining, and reduce costs. 2. Forging can eliminate the internal defects of the metal, improve the structure, and thus increase the service life of the bearing.
General process of forging:
Bar material ,inspection, heating, blanking, secondary heating, forging, rolling,cooling, annealing, cleaning

Slewing bearings perform extremely well in a variety of applications such as:
• access platforms
• bucket wheel excavators
• conveyor booms
• cranes of all types
• small, medium and large excavators
• indexing tables
• ladle turrets
• offshore applications
• robots
• railway bogies
• rotary platforms
• stackers
• solar mirrors
• tunnel boring machines
• wind turbines
