01B135M, 01B135M bearing, 01B135M split roller bearing

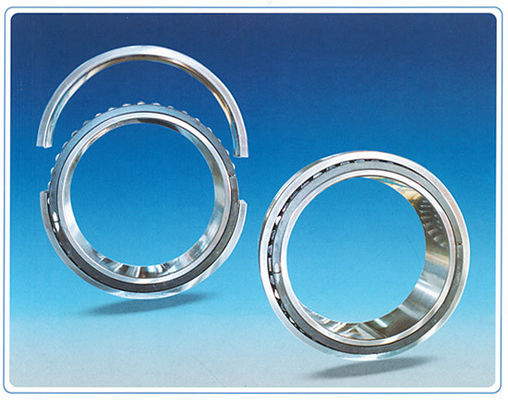

Description:Cooper Split roller bearing

Type: Split roller bearing : 01B135M

Dimension: 135x241.3x98.4  mm/Metic

ID(inner diameter)/Bore:135mm

OD(outer diameter): 241.3mm

Inner ring Width/Height/thickness(C):98.4 mm

Outer ring width/Height/thickness(B):55.6mm

Basic Dimensions(mm)				Bearing Designations	Bearing ratings (KN)			Max Speed	Weight
d	D	C	B		Cr	Cor	Ca	rpm	(KGS)
135	241.3	98.4	55.6	01B135M	394	542	25.8	1570	15

The Cooper Split cylindrical roller bearing 01B135M are intended primarily for bearing arrangements which are difficult to access or for cranked shafts. It is advantageous to use them in all cases where the maintenance or replacement of non-split bearings would require considerable extra time-consuming effort and would cause long and expensive or even inadmissible machine downtime.



 If you have just landed here, this Bearing  01B135M, You can call us or send enquiry, we would give you the prices, packing,  and more detailed information on the 001B135M bearing .



We cooperate with DHL,TNT,FEDEX,UPS,EMS, and shipping agency etc.They guarantee to meet your needs in terms of time and money, , YES, we ship worldwide. We had a lot of bearing in our warehouse, if we have no stock, the manufacture time:10-20 days.



The Bearing inner ring and outer ring forging material:GCr15SiMn ,GCr15, Chrome steel

The  Inner ring and outer ring hardness: 58-62HRC

The manufacture process including: Lathe process, Heat treatment process, Grinding process, Assembly process and final inspect process and on on.

The package: standard export wooden case or carton boxes.



The Cooper Split cylindrical roller bearing 01B135M applicantion:Bucket wheel escavators and reclaimers, Winch drums and rope shearves Screw conveyors, Bucket elevators and conveying belts, Line shafting, Continues casters, Marine propeller shafting, Crankshafts, Mixers and stirrers, Mills and crusher, Sinter plants and rotary kilns, Fans and blower, Dedusting equipment, Dirve and Line shafts.
