Spur Pinion gear Generate External Teeth Matched Slewing Bearing
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Precision Rating: | P5 P6 Grade | Teeth Shape: | Spur Shape |
|---|---|---|---|
| Material: | 42CrMo,50Mn ,stainless Steel | Heat Treatment: | Queching And Tempering |

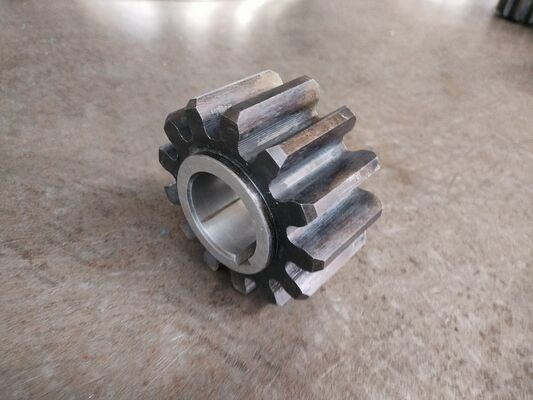

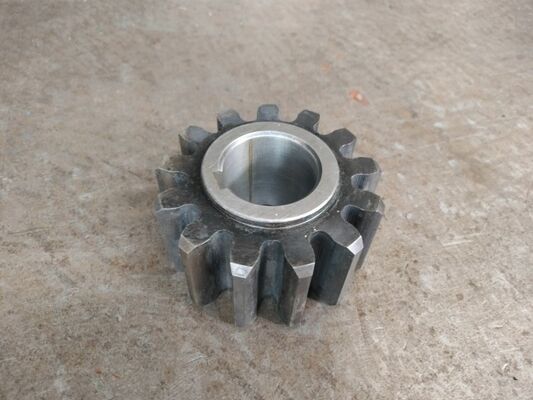

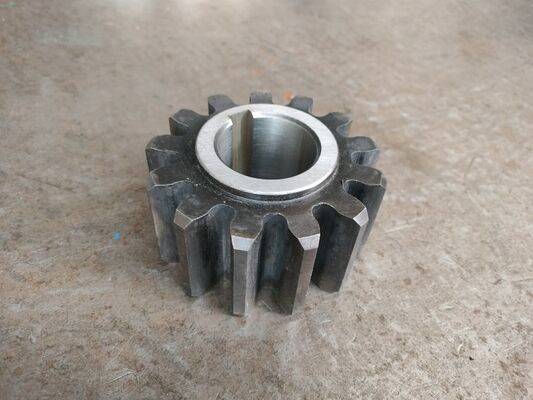

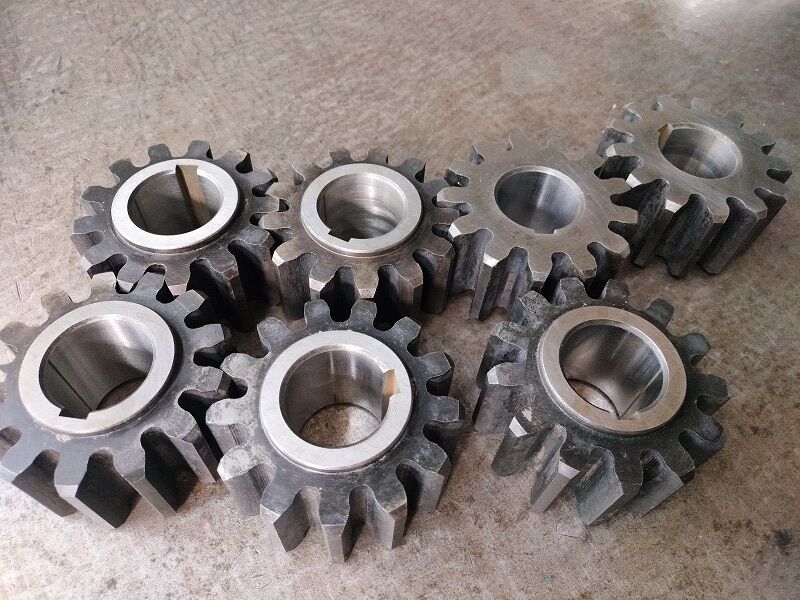

Spur pinion generate external teeth matched slewing bearing
Name: spur Pinion gear teeth
Size:94.25*38*73mm
Outer diameter:94.25mm
Inner diameter:38mm
Width:73mm
Teeth No.:13 pcs
Teeth: external teeth
Pressure angel: 0 degree
Modulus :m=6.35
Precision grade:AGMA Q8
Queching&tempering hardness:250-300 HB
Teeth quenching hardness: HRC50+-5
Material:42CrMo
Teeth shape:Full depth teeth
Matched the bearing structure:slewing ball bearing with internal teeth
The main functions of gears include transmitting power and motion, changing rotation speed and torque, changing rotation direction, achieving long-distance transmission, smooth transmission and buffering and vibration reduction, precise transmission, and realizing various forms of motion.
