Spherical Roller Bearings 238/670B/W33 Cylindrical Bore 820670112mm

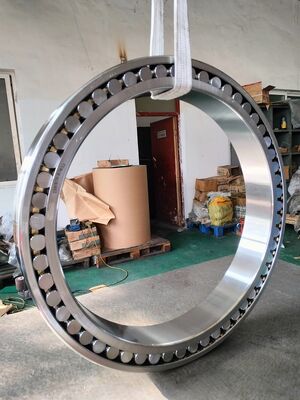

Large Image : Spherical Roller Bearings 238/670B/W33 Cylindrical Bore 820*670*112mm

Product Details:

Place of Origin:	China
Brand Name:	oem
Certification:	Quality certificate
Model Number:	238/670B/W33

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	1-10000USD/negotiation
Packaging Details:	Carton or standard export wooden case
Delivery Time:	stock
Payment Terms:	T/T,L/C
Supply Ability:	10000 pcs/month

Contact Now

Detailed Product Description

Bearing Structure:	Spherical Roller Bearing	Clearance:	C0 C3 Group
Rolling Element:	Roller	Heat Treatment:	58-62HRC
Cage:	Brass	Lubriation:	Oil Lubrication

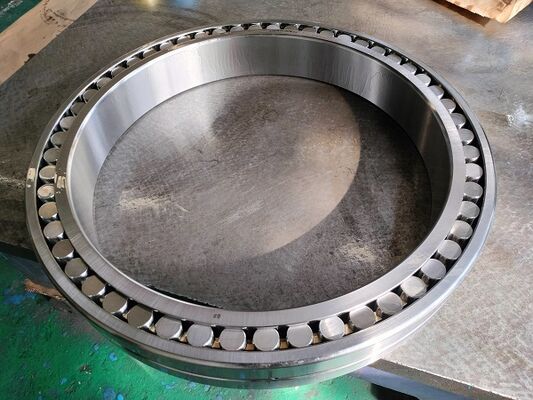

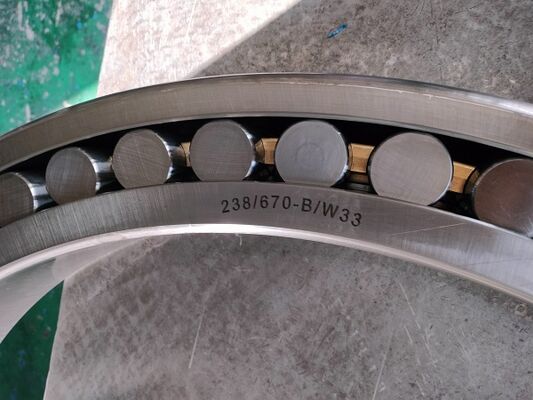

Spherical roller bearings 238/670B/W33 cylindrical bore

Spherical roller bearings 238/670B/W33 are self-aligning bearings that are consequently insensitive to misalignment of the shaft, they have two rows of rollers so they are able to carry heavy radial loads, all sizes are available with cylindrical or tapered bores.Common features of all designs include symmetrical rollers and a floating guide ring between the roller rows. The arrangement of the guide ring as well as the cage execution are different for the various designs.

Spherical roller bearing type	238/670B/W33 with cylindrical bore
Dimension:	820670112mm
Outer diameter:	820mm
Inner diameter :	670mm
Height:	112mm
Weight	130 kgs
Rolling material	GCr15
Cage material	Brass
clearance	C1 C2 C3 C0
Bore	cylindrical bore
Lubrication	oil lubrication
Delivery time	30 days
W33	Oil groove

W20 Three lubrication holes in the outer ring
W26 Six lubrication holes in the inner ring
W33 Annular groove and three lubrication holes in the outer ring
W64 Solid Oil filling
W77 Plugged W33 lubrication holes
W513 W26 + W33
C2 Radial internal clearance smaller than Normal
C3 Radial internal clearance greater than Normal
C4 Radial internal clearance greater than C3

Spherical Roller Bearings 238/670B/W33 Cylindrical Bore 820*670*112mm
