|Precision Rating:||P4 P5||Seals Type:||Doulbe Seal|
|Number Of Row:||Single Row||Outer Dia:||660mm|
|Teeth:||Internal Teeth||Harden Teetn:||Queching And Temper|
|Application:||Indexing Tables||Material:||42CrMo 50Mn|
|Sturcture:||Four Point Contact Ball||Rolling:||Ball|
Four-point contact ball bearing 7914 design which provides exceptional moment, thrust, and radial load capacities. Integral seals are provided to assist in the exclusion of contaminants.
|Description||7914 slewing bearing|
7914 slewing ring
7914 turntable bearing
7914 four point contact ball slewing bearing
|Outer diameter(OD)||660 mm|
|Inner diameter(ID)||466 mm|
|Package||Inside package: plastic film + kraft paper + blue tape; Outside package: standard export free-fumigation wooden case.|
|The delivery time||20-30 days|
|Service||Technology communicate with engineer, and if you need the assembly drawing,we can send to you|
|Certificate||Fore A Fore E ,OA Available|
|Seaport name||Shanghai Qingdao Tianjin available|
|Teeth data||Module:6,No of teeth: 80, modification coefficient X=0|

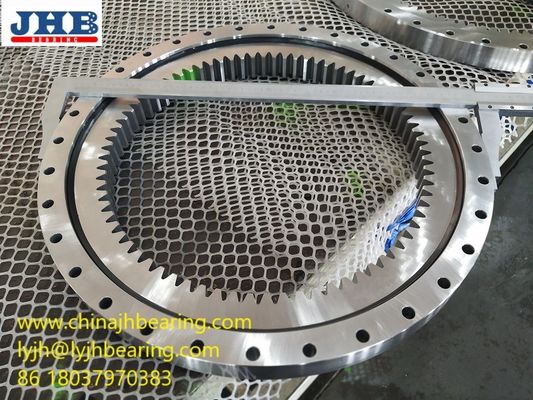

Slewing Ball Bearing 7914 With 660x466x70mm inxternal Teeth reference actual picture as following:
Slewing bearing is one of our main products.
1. four point contact ball slewing bearing (no gear, external gear, internal gear);
2. two row ball slewing bearing (no gear, external gear, internal gear);
3. crossed cylindrical roller slewing bearing;(no gear, external gear, internal gear);
4. three row cylindrical roller slewing bearing;(no gear, external gear, internal gear);
5. crossed tapered roller slewing bearing; (no gear, external gear, internal gear);
6. ball and roller combined slewing bearing.(no gear, external gear, internal gear);
Steel ball/Roller:carbon-chromium bearing steel GCr15SiMn or GCr15 for rolling Material
Cage: include integral cage, segment cage and spacer-type cage. We use 20# steel or copper for integral and segment cages, PA 1010 resin or QA110-3-105 albronze for spacer-type cages.
Seals:uses NBR or VITON, few felted wool.
The blanks of bearing rings are mainly made of rods and tubes, while the forging process is only applicable to rods. However, forgings are the most used blank materials in bearing manufacturing, and are suitable for large and medium-sized bearings. Forging can be divided into hot forging, cold forging and warm forging. Hot forging refers to processing above the re-crystallization temperature of the billet metal, warm forging is forging at a temperature not exceeding the re-crystallization temperature, and cold forging refers to forging at normal temperature.
The purpose of ferrule forging: 1. Through forging, obtain a blank with a size similar to the product, improve the utilization of metal materials, reduce the amount of machining, and reduce costs. 2. Forging can eliminate the internal defects of the metal, improve the structure, and thus increase the service life of the bearing.
General process of forging:
Bar material ,inspection, heating, blanking, secondary heating, forging, rolling,cooling, annealing, cleaning
Slewing bearings perform extremely well in a variety of applications such as:
• access platforms
• bucket wheel excavators
• conveyor booms
• cranes of all types
• small, medium and large excavators
• indexing tables
• ladle turrets
• offshore applications
• railway bogies
• rotary platforms
• solar mirrors
• tunnel boring machines
• wind turbines
