T6AR43158A2 Heavy Load Thrust Roller Bearing 43.18x158.75x278.765mm

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

T6AR43158A2 Heavy Load Thrust Roller Bearing 43.18x158.75x278.765mm

China T6AR43158A2 Heavy Load Thrust Roller Bearing 43.18x158.75x278.765mm supplier
T6AR43158A2 Heavy Load Thrust Roller Bearing 43.18x158.75x278.765mm supplier T6AR43158A2 Heavy Load Thrust Roller Bearing 43.18x158.75x278.765mm supplier T6AR43158A2 Heavy Load Thrust Roller Bearing 43.18x158.75x278.765mm supplier

Large Image :  T6AR43158A2 Heavy Load Thrust Roller Bearing 43.18x158.75x278.765mm

Product Details:

Place of Origin: China
Brand Name: JHB or your required
Certification: ISO9001:2008
Model Number: T6AR43158A2

Payment & Shipping Terms:

Minimum Order Quantity: 2PCS
Price: 1-1000USD/negotiation
Packaging Details: Carton or standard export wooden case
Delivery Time: in stock or ex-stock
Payment Terms: T/T,L/C, Western Union
Supply Ability: 1000 pcs/month
Contact Now
Detailed Product Description
Precision Rating: P4 P5 Ring Material: GCr15SiMn
Roller Material: GCr15 Roller Strcutre: Cylindrical Roller
Full Size: 43.18X158.75X278.765mm Shaft Dia: 43.18mm
Outer Dia: 158.75mm Height: 278.765mm

T6AR43158A2 Heavy Load Thrust Roller Bearing 43.18x158.75x278.765mm



T6AR43158A2 Heavy Load Thrust Roller Bearing 43.18x158.75x278.765mm



 Tandem roller bearings T6 AR43158A2 consist of several axial cylindrical roller bearings arranged in line, A system of rings and washers matched to each other ensures that all stages of the tandem bearing are subjected to uniform load at all times irrespective of the ratio C/F. The rings and washers are made from hardened steel. Tandem bearings are predominantly fitted with standard axial cylindrical roller and bearing assemblies. The thrust cylindrical roller bearing T6AR 43158A2 with size 43.18X158.75X278.65mm , the inner diameter:43.18mm, the outer diameter:158.75mm, the total height:278.765mm



Tandem bearing Basic size unit(mm)

Basic load rating

Unit (KN)

Inner dia Outer dia Height Cr Cor
t6ar43158a2 43.18 158.75 278.65 2116 8875

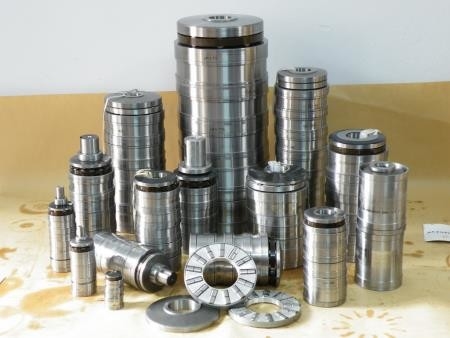

Tandem Thrust Bearings

The bearing consists of a series of thrust plates and roller assemblies with compression sleeves separating the stages. The component design and overall match grinding make this bearing unique. The design of the sleeves, along with the precision match grinding of the components, allows the load to be equally applied through the stages of the bearing.
Tandem thrust bearings are designed to be used in horizontal shaft applications (extruder gear drives) and it is essential that a sufficientthrust load be applied to prevent roller slip. Typically, the minimum load required is expressed as a ratio of the bearing’s dynamic load rating (C)
to the applied load (P). Loads representing C/P > 12 must be avoided and loads where C/P falls between 8 and 12 should be avoided.
The tandem design allows the use of a high thrust capacity bearing in a small area. It was originally designed for a rotary swivel used on an oil drilling rig. Later these bearings were adopted by plastics and rubber manufacturers for use in single screw extruders utilizing 2 and 3 stage bearings. The tandem design enabled the extruder manufacturers to
increase the output of the machines without increasing the size of the
gearboxes.This allowed their customers to have a higher output machine without taking up more floor space. These bearings are used in twin screw extruders as well.Twin screw extruders have two parallel shafts very close to each other, making the use of the tandem thrust bearing essential. Some twin screw extruder designs use eight stage tandem thrust bearings.We manufacture two, three, four, six and eight stage bearings in both inch and metric
series. Bore sizes range from about 1 to 22 inches with corresponding outside diameters ranging from 3.5 to 42 inches. tandem thrust bearings are supplied to original equipment manufacturers and the aftermarket.



   T6AR43158A2 Heavy Load Thrust Roller Bearing 43.18x158.75x278.765mm

T6AR43158A2 Heavy Load Thrust Roller Bearing 43.18x158.75x278.765mm



The bearing Food extruder multi-stage tandem thrust bearings factory  T6AR 3495 34X95X196mm will use the following industry machine:



T6AR43158A2 Heavy Load Thrust Roller Bearing 43.18x158.75x278.765mm

T6AR43158A2 Heavy Load Thrust Roller Bearing 43.18x158.75x278.765mm

T6AR43158A2 Heavy Load Thrust Roller Bearing 43.18x158.75x278.765mm

T6AR43158A2 Heavy Load Thrust Roller Bearing 43.18x158.75x278.765mm

T6AR43158A2 Heavy Load Thrust Roller Bearing 43.18x158.75x278.765mm

Tandem Bearings Type

1. Basic Type: The bearing adopts elastic spacer to connect the shaft washer,housing washer, roller and cage assembly. The components of this Thrust Bearings are demountable. The user should assemble or dismount the bearing meticulously according to our guide book.



2. Shaft Type: The bearing is made by penetrating an axis through the inner bore of basic type bearing and fastening the bearing to the axis by locking collar/snap ring. The components of this type bearing are inseparable. Shaft type tandem bearing is variational structure of basic type.



3. Multi-stage cylindrical roller thrust bearing (sleeve type) locking collar is made by covering a sleeve to the external of the basic type multi-stage cylindrical roller thrust bearing. It is also inseparable,and is assembled and disassembled as a whole.



Tandem Thrust Bearings Type:
1.Multi-stage cylindrical roller thrust bearing (basic type) adopts elastic spacer to connect the shaft washer,housing washer, roller and cage assembly.The components of this Thrust Bearings are demountable. The user should assemble or Dismount the bearing meticulously according to numeral order we provide.
2. Multi-stage cylindrical roller thrust bearing (shaft type) is made by penetrating an axis through the inner bore of basic type multi-stage cylindrical roller thrust bearing and fastening the bearing to the axis by locking collar.The components of this type of cylindrical roller thrust bearing are inseparable.In 2000, our multi-stage cylindrical roller thrust bearing (shaft type) obtained the national patent and was awarded "high-tech product" by Department of Science and Technology in Jiangsu Province.
3. Multi-stage cylindrical roller thrust bearing (sleeve type) locking collar is made by covering a sleeve to the external of the basic type multi-stage cylindrical roller thrust bearing.It is also inseparable,and is assembled and disassembled as a whole.
Tandem Thrust Bearing Application:
Rubber industry parallel twin-screw extruder,Deep drilling oil rig,Pipelay pulling machine,Screw press oil extraction machine
