Pinion gear 84x26x56mm matched slewing bearing RKS.062.20.0544
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| NAME: | Pinion | Material: | 42CrMo |
|---|---|---|---|
| Gear: | With External Gear | Delivery Time: | 30 Days |
| Quality Guarantee: | 5 Year |

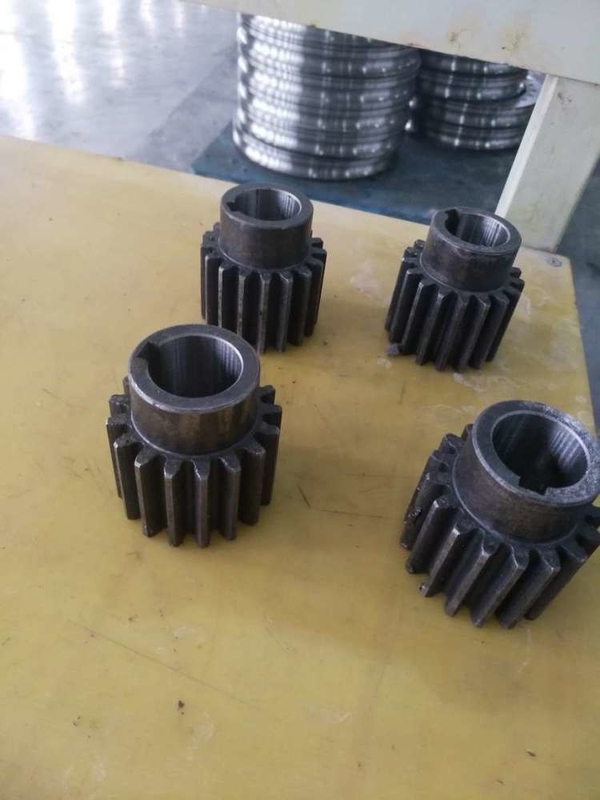

Pinion gear 84x26x56mm matched slewing bearing RKS.062.20.0544
The pinion 84x26x56mm specification as following:
| Pinion dimension | 84x26x56mm |
| Out dia |
Φ84 mm
|
| Inner dia | Φ26 mm |
| height | Φ56 mm |
The pinion material:42CrMo
The pinion heat treatment:
The forging hardness of hardening and tempering:HB229-269
The gear hardness of quenching:HRC40-50
Quality guarantee:5 years
Service: can offer the assembly drawing
The pinion teeth parameter as following:
The module:3.5
No of teeth:22
Press angle: 20 degree
If you want to learn more, you can tell us your required technical data,we will design the drawing for you according to offer.
The delivery time about 20 days.
The pinion gear including spur gear and helical gear and herringbone gear.Also welcome your customized.
We/JinHang Precision bearing offer pinion ,spare parts,slewing bearing,turntable bearing,swivel bearing,slewing ring,They are used in heavy industry equipment.
The package: standard wooden case.
JinHang Precision pinion gear advantage:
1.Multidirectional load/high rigidity
2.high precision
3.Used in Heavy duty equipment
4.Short delivery time
5.Standard export wooden case package
6.Super original forging
