How to find YRT180 Rotary table bearing in stock,180x280x43mm,Material GCr15 chrome steel

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

How to find YRT180 Rotary table bearing in stock,180x280x43mm,Material GCr15 chrome steel

China How to find YRT180 Rotary table bearing in stock,180x280x43mm,Material GCr15 chrome steel supplier
How to find YRT180 Rotary table bearing in stock,180x280x43mm,Material GCr15 chrome steel supplier How to find YRT180 Rotary table bearing in stock,180x280x43mm,Material GCr15 chrome steel supplier How to find YRT180 Rotary table bearing in stock,180x280x43mm,Material GCr15 chrome steel supplier

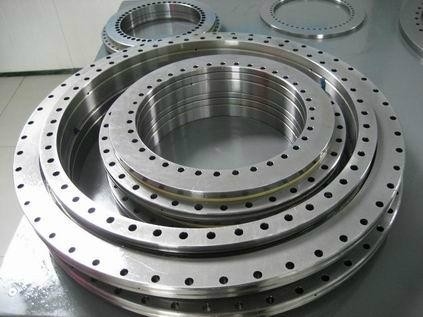

Large Image :  How to find YRT180 Rotary table bearing in stock,180x280x43mm,Material GCr15 chrome steel

Product Details:

Place of Origin: China
Brand Name: JHB or OEM
Certification: Quality certificate
Model Number: YRT180

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: negotiation
Packaging Details: Carton or standard export wooden case
Delivery Time: available ,if unavailable,it will need 20-30 days
Payment Terms: T/T,L/C
Supply Ability: 1000 pcs/month
Contact Now
Detailed Product Description
Precision Rating: P2 P4 P5 Seals Type: No Seal
Number Of Row: Three Row Roller: Cylindrical

How to find YRT180 Rotary table bearing in stock,180x280x43mm,Material GCr15 chrome steelHow to find YRT180 Rotary table bearing in stock,180x280x43mm,Material GCr15 chrome steel

The YRT180 rotary table bearing parameter as follows:



Items

Data

Unit

Description

YRT180

rotary table bearing



ID(inner diameter)/Bore

180

mm

OD(outer diameter)

280

mm

H:Width/Height/thickness

43

mm

d1

7

mm

d2

11

mm

d3

7

mm

H1

29

mm

H2

14

mm

J

194

mm

J1

260

mm

Ca (Axial Dynamic load rating)

92

KN

Coa (Axial Static load rating)

580

KN

Cr (Radial Dynamic load rating)

83

KN

Cor (Radial Static load rating)

209

KN

Ra (Roughness)

0.8

μm

Weight

7.7

KGS



The YRT180 Bearing details as follows:



Component

YRT180 bearing consist of a thrust/radial housing washer, a thrust/radial shaft washer, a thrust washer, two axial needle roller and cage assemblies and a group of radial cylindrical roller

Details

Housing washer and shaft washer have bolt holes for install equally spacer. This kind of bearing has high axial load and radial load, and high tilting rigidity and high precision.

This bearing request higher quality of the parts matches it. You must control screw tightening torque when install it.

Application

This bearing can be used to the machine tool or other high precision machinery of the rotary table or subset, and also can be used for chuck, measuring instruments and test equipment and rotary table configuration.

Material

GCr15SiMn ,GCr15, Chrome steel

Packing

First lubricated, Second circled with plastic film/Kraft paper/blue belt, and then packaged in plywood case, last gathered in Wooden pallet

Delivery time

In stock, if not available,It will need 20-30 days

Serive

Our engineer can design the assembly drawing to you

YRT series rotary table bearing product as follows:



Bearing No.

Principal dimension(mm)

Weight

(kg)

d

D

H

H1

C

d 1

dn

dm

YRT50

50

126

30

20

10

105

63

116

1.6

YRT80

80

146

35

23.35

12

130

92

138

2.4

YRT100

100

185

38

25

12

160

112

170

4.1

YRT120

120

210

40

26

12

184

135

195

5.3

YRT150

150

240

40

26

12

214

165

225

6.2

YRT180

180

280

43

29

15

244

194

260

7.7

YRT200

200

300

45

30

15

274

215

285

9.7

YRT260

260

385

55

36.5

18

345

280

365

18.3

YRT325

325

450

60

40

20

415

342

430

25

YRT395

395

525

65

42.5

20

486

415

505

33

YRT460

460

600

70

46

22

560

482

580

45

YRT580

580

750

90

60

30

700

610

720

89

YRT650

650

870

122

78

34

800

680

830

170

YRT850

850

1095

124

80.5

37

1018

890

1055

253

YRT950

950

1200

132

86

40

1130

990

1160

312

YRT1030

1030

1300

145

92.5

40

1215

1075

1255

375
