Home ProductsYRT Rotary table bearing

YRT580 rotary table bearing China manufacture/supplier,580x750x90mm in stocks Machine Tools Vertical-axis

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

YRT580 rotary table bearing China manufacture/supplier,580x750x90mm in stocks Machine Tools Vertical-axis

China YRT580 rotary table bearing China manufacture/supplier,580x750x90mm in stocks Machine Tools  Vertical-axis supplier
YRT580 rotary table bearing China manufacture/supplier,580x750x90mm in stocks Machine Tools  Vertical-axis supplier YRT580 rotary table bearing China manufacture/supplier,580x750x90mm in stocks Machine Tools  Vertical-axis supplier YRT580 rotary table bearing China manufacture/supplier,580x750x90mm in stocks Machine Tools  Vertical-axis supplier YRT580 rotary table bearing China manufacture/supplier,580x750x90mm in stocks Machine Tools  Vertical-axis supplier

Large Image :  YRT580 rotary table bearing China manufacture/supplier,580x750x90mm in stocks Machine Tools Vertical-axis

Product Details:

Place of Origin: China
Brand Name: JHB or OEM
Certification: YRT 580 quality certificate
Model Number: YRT580

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: USD2000
Packaging Details: standard export wooden case
Delivery Time: 2 days
Payment Terms: T/T, Western Union
Supply Ability: 1000USD/PCS
Contact Now
Detailed Product Description
Material: GCr15SiMn Delivery Time: In Stocks
Cage: Brass Cage Precision Grade: P4
Package: Wooden Case

YRT580 rotary table bearing China manufacture/supplier,580x750x90mm in stocks





YRT 580 rotary table bearing belongs to consisted of a thrust/radial race, a trust/radial ring, a trust washer, two needle roller and cage asseblies and a set of radial cylinderical rollers. On the race and the ring, there are equally distributed screw holes for mounting.

YRT turntable bearing has a high axial and radial capacity, and high declining rigidity and a very high precision.



YRT580 rotary table bearing technology data as following:



Items Data Unit
Description

YRT580

rotary table bearing


ID(inner diameter)/Bore 580 mm
OD(outer diameter) 750 mm
H:Width/Height/thickness 90 mm
Ca (Axial Dynamic load rating) 490 KN
Coa (Axial Static load rating) 4250 KN
Cr (Radial Dynamic load rating) 228 KN
Cor (Radial Static load rating) 965 KN
Ra (Roughness) 10 μm
Weight 89 KGS







YRT580 rotary table bearing feature:

YRT 580 precision rotary table bearing is a kind of bearing fixed by a bidirectional thrust bearing and a centripetal-guided bearing. They can support radial loads, axial loads from both directions and tilting moments free from clearance and are particularly suitable for bearing arrangements with high requirements for running accuracy,like rotary tables, millings heads and reversible clamps chucks , milling heads, measuring instruments , test equipment as well as rotary turntable. Due to the fixing holes in the bearing rings, the units are very easy to fit.

The bearings are radially and axially preloaded after fitting.

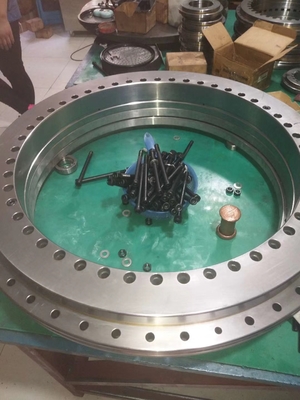

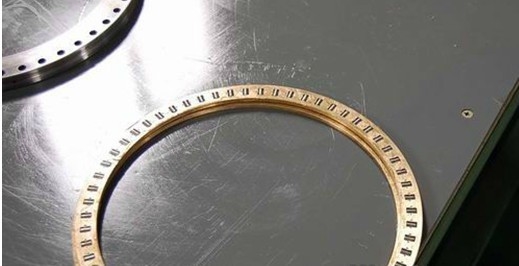

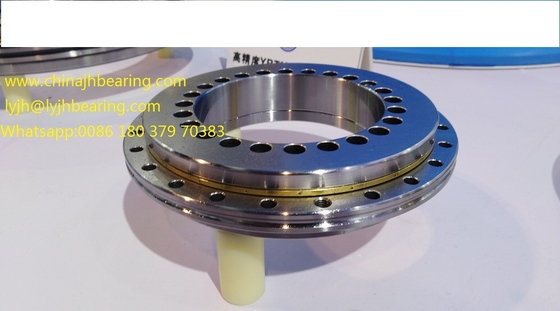

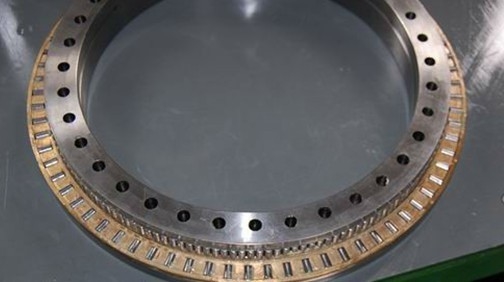

YRT580 rotary table bearing actual picture :

YRT580 rotary table bearing China manufacture/supplier,580x750x90mm in stocks Machine Tools  Vertical-axis



YRT580 rotary table bearing application as following :



Applications:

Machine Tools Vertical-axis

Rotation Positioning and Indexing Tables

Rotary Grinding Machines

Industrial Robotic Arms

Defense Ordnance Radar Turrets Large Telescopes



YRT580 rotary table bearing China manufacture/supplier,580x750x90mm in stocks Machine Tools  Vertical-axis
