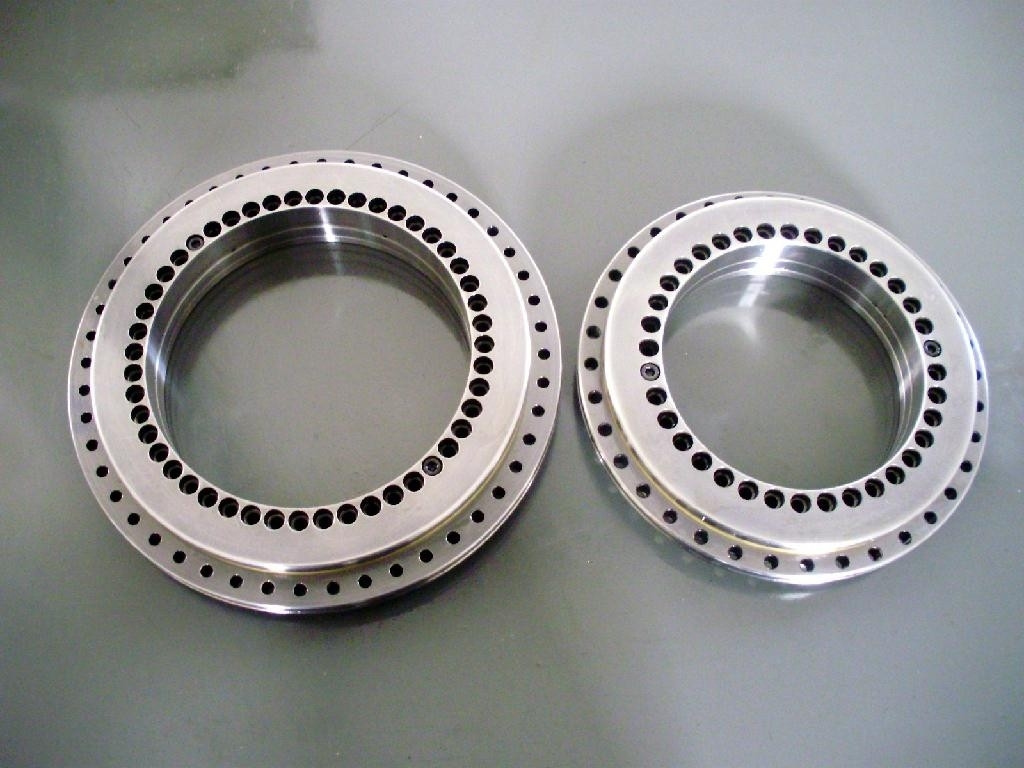

YRT120 Rotary table bearing used in high precisin machine ,120x210x40mm

All Products

Slewing bearing (624)

Turntable bearing (73)

Cylindrical roller bearing (394)

Rolling mill Bearing (132)

Spherical roller bearing (144)

Tapered roller bearing (103)

Tandem Extruder Bearing (281)

Pinion gear (11)

Machine Parts (115)

crossed roller bearing (214)

YRT Rotary table bearing (39)

Main Spindle Ball Bearing (647)

Thin section ball bearing (157)

Full complement cylindrical roller bearing (172)

Split roller bearing (135)

Spherical roller thrust bearing (102)

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

Minimum Order Quantity:	1PCS
Price:	negotiation
Packaging Details:	Carton or standard export wooden case
Delivery Time:	available ,if unavailable,it will need 20-30 days
Payment Terms:	T/T,L/C
Supply Ability:	1000 pcs/month

Contact Now

Detailed Product Description

Precision Rating:	P2 P4 P5	Seals Type:	No Seal
Number Of Row:	Three Row	Roller:	Cylindrical

YRT120 Rotary table bearing used in high precisin machine ,120x210x40mm

The YRT120 rotary table bearing parameter as follows:

Items	Data	Unit
Description	YRT120 rotary table bearing
ID(inner diameter)/Bore	120	mm
OD(outer diameter)	210	mm
H:Width/Height/thickness	40	mm
d1	7	mm
d2	11	mm
d3	7	mm
H1	26	mm
H2	14	mm
J	135	mm
J1	195	mm
Ca (Axial Dynamic load rating)	80	KN
Coa (Axial Static load rating)	445	KN
Cr (Radial Dynamic load rating)	70	KN
Cor (Radial Static load rating)	148	KN
Ra (Roughness)	0.4	μm
Weight	5.3	KGS

The YRT120 Bearing details as follows:

Component	YRT120 bearing consist of a thrust/radial housing washer, a thrust/radial shaft washer, a thrust washer, two axial needle roller and cage assemblies and a group of radial cylindrical roller
Details	Housing washer and shaft washer have bolt holes for install equally spacer. This kind of bearing has high axial load and radial load, and high tilting rigidity and high precision. This bearing request higher quality of the parts matches it. You must control screw tightening torque when install it.
Application	This bearing can be used to the machine tool or other high precision machinery of the rotary table or subset, and also can be used for chuck, measuring instruments and test equipment and rotary table configuration.
Material	GCr15SiMn ,GCr15, Chrome steel
Packing	First lubricated, Second circled with plastic film/Kraft paper/blue belt, and then packaged in plywood case, last gathered in Wooden pallet
Delivery time	In stock, if not available,It will need 20-30 days
Serive	Our engineer can design the assembly drawing to you
