YRT1030 Rotary table bearing rotary turntable bearing for CNC machine tool center, offer sample

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

YRT1030 Rotary table bearing rotary turntable bearing for CNC machine tool center, offer sample

China YRT1030 Rotary table bearing  rotary turntable bearing for CNC machine tool center, offer sample supplier
YRT1030 Rotary table bearing  rotary turntable bearing for CNC machine tool center, offer sample supplier YRT1030 Rotary table bearing  rotary turntable bearing for CNC machine tool center, offer sample supplier YRT1030 Rotary table bearing  rotary turntable bearing for CNC machine tool center, offer sample supplier YRT1030 Rotary table bearing  rotary turntable bearing for CNC machine tool center, offer sample supplier

Large Image :  YRT1030 Rotary table bearing rotary turntable bearing for CNC machine tool center, offer sample

Product Details:

Place of Origin: China
Brand Name: JHB
Certification: Quality certificate
Model Number: YRT1030

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: 1-10000USD/negotiation
Packaging Details: Carton or standard export wooden case
Delivery Time: 10-20 days
Payment Terms: T/T,L/C, Western Union
Supply Ability: 1000 pcs/month
Contact Now
Detailed Product Description
Material: GCr15SiMN Tolerance: P4 Grade
Package: Wooden Case

YRT1030 Rotary table bearing rotary turntable bearing for CNC machine tool center, offer sample





The YRT1030 rotary table Bearing inner ring and outer ring forging material:GCr15SiMn ,GCr15, Chrome steel

The YRT1030 Bearing roller material : GCr15SiMn ,GCr15, Chrome steel
The YRT1030 Bearing Inner ring and outer ring hardness: 58-62HRC
The manufacture process including: Lathe process, Heat treatment process, Grinding process, Assembly process and final inspect process and on on.
The delivery time:10-20 days
The package: standard export wooden case or carton boxes.

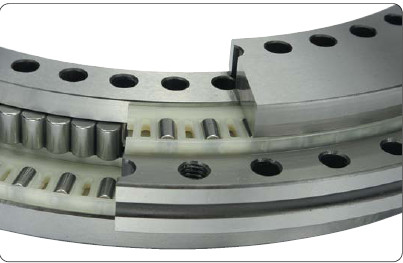

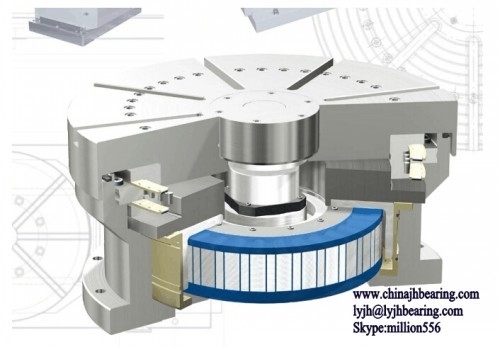

YRT1030 rotary table bearing is a kind of bearing fixed by a bidirectional thrust bearing and a centripetal-guided bearing. They can support radial loads, axial loads from both directions and tilting moments free from clearance and are particularly suitable for bearing arrangements with high requirements for running accuracy,like rotary tables, millings heads and reversible clamps chucks , milling heads, measuring instruments , test equipment as well as rotary turntable.
.Due to the fixing holes in the bearing rings, the units are very easy to fit.


Items

Data

Unit

Description

YRT1030 rotary table bearing



ID(inner diameter)/Bore

1030

mm

OD(outer diameter)

1300

mm

H:Width/Height/thickness

145

mm

d1

18

mm

d2

26

mm

d3

18

mm

H1

92.5

mm

H2

-

mm

J

1075

mm

J1

1255

mm

Ca (Axial Dynamic load rating)

1080

KN

Coa (Axial Static load rating)

11000

KN

Cr (Radial Dynamic load rating)

620

KN

Cor (Radial Static load rating)

2650

KN

Ra (Roughness)

1.6

μm

Weight

375

KGS

YRT1030 Rotary table bearing  rotary turntable bearing for CNC machine tool center, offer sample
