YRT650 rotary table bearing 650x870x122mm used for CNC swing table,directly sales for end user

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

YRT650 rotary table bearing 650x870x122mm used for CNC swing table,directly sales for end user

China YRT650 rotary table bearing 650x870x122mm used for CNC swing table,directly sales for end user supplier
YRT650 rotary table bearing 650x870x122mm used for CNC swing table,directly sales for end user supplier YRT650 rotary table bearing 650x870x122mm used for CNC swing table,directly sales for end user supplier YRT650 rotary table bearing 650x870x122mm used for CNC swing table,directly sales for end user supplier YRT650 rotary table bearing 650x870x122mm used for CNC swing table,directly sales for end user supplier

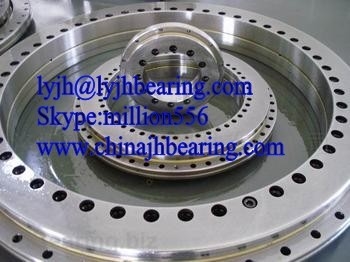

Large Image :  YRT650 rotary table bearing 650x870x122mm used for CNC swing table,directly sales for end user

Product Details:

Place of Origin: China
Brand Name: JHB
Certification: Quality certificate
Model Number: YRT650

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: 1-10000USD/negotiation
Packaging Details: Carton or standard export wooden case
Delivery Time: 10 days
Payment Terms: T/T,L/C
Supply Ability: 1000 pcs/month
Contact Now
Detailed Product Description
Delivery Time: 7 Days Material: GCr15SiMn
Package: Wooden Case

YRT650 rotary table bearing 650x870x122mm used for CNC swing table,directly sales for end user







The YRT650 rotary table Bearing inner ring and outer ring forging material:GCr15SiMn ,GCr15, Chrome steel

The YRT650 Bearing roller material : GCr15SiMn ,GCr15, Chrome steel
The YRT650 Bearing Inner ring and outer ring hardness: 58-62HRC
The manufacture process including: Lathe process, Heat treatment process, Grinding process, Assembly process and final inspect process and on on.
The delivery time:10-20 days
The package: standard export wooden case or carton boxes.

YRT650 rotary table bearing is a kind of bearing fixed by a bidirectional thrust bearing and a centripetal-guided bearing. They can support radial loads, axial loads from both directions and tilting moments free from clearance and are particularly suitable for bearing arrangements with high requirements for running accuracy,like rotary tables, millings heads and reversible clamps chucks , milling heads, measuring instruments , test equipment as well as rotary turntable.
.Due to the fixing holes in the bearing rings, the units are very easy to fit.


Items

Data

Unit

Description

YRT650rotary table bearing



ID(inner diameter)/Bore

650

mm

OD(outer diameter)

870

mm

H:Width/Height/thickness

122

mm

d1

14

mm

d2

20

mm

d3

14

mm

H1

78

mm

H2

44

mm

J

680

mm

J1

830

mm

Ca (Axial Dynamic load rating)

495

KN

Coa (Axial Static load rating)

5200

KN

Cr (Radial Dynamic load rating)

415

KN

Cor (Radial Static load rating)

1500

KN

Ra (Roughness)

1.6

μm

Weight

170

KGS

























































YRT650 rotary table bearing 650x870x122mm used for CNC swing table,directly sales for end user
