YRT200 Rotary table bearing in stock, used in test equipment,quality guarantee ,offer sample

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

YRT200 Rotary table bearing in stock, used in test equipment,quality guarantee ,offer sample

China YRT200 Rotary table bearing in stock, used in test equipment,quality guarantee ,offer sample supplier
YRT200 Rotary table bearing in stock, used in test equipment,quality guarantee ,offer sample supplier YRT200 Rotary table bearing in stock, used in test equipment,quality guarantee ,offer sample supplier YRT200 Rotary table bearing in stock, used in test equipment,quality guarantee ,offer sample supplier YRT200 Rotary table bearing in stock, used in test equipment,quality guarantee ,offer sample supplier

Large Image :  YRT200 Rotary table bearing in stock, used in test equipment,quality guarantee ,offer sample

Product Details:

Place of Origin: China
Brand Name: JHB
Certification: Quality certificate
Model Number: YRT200

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: 1-1000USD
Packaging Details: Carton or standard export wooden case
Delivery Time: in stocks
Payment Terms: T/T,L/C, Western Union
Supply Ability: 1000 pcs/month
Contact Now
Detailed Product Description
Material: GCr15SiMn Precision: P4
Packing: Wooden Case Service: Offer Assembly Drawing

YRT200 Rotary table bearing in stock, used in test equipment,quality guarantee ,offer sample





The YRT200 rotary table Bearing inner ring and outer ring forging material:GCr15SiMn ,GCr15, Chrome steel
The YRT200 Bearing roller material : GCr15SiMn ,GCr15, Chrome steel
The YRT200 Bearing Inner ring and outer ring hardness: 58-62HRC
The manufacture process including: Lathe process, Heat treatment process, Grinding process, Assembly process and final inspect process and on on.
The delivery time:10-20 days
The package: standard export wooden case or carton boxes.

YRT200 rotary table bearing is a kind of bearing fixed by a bidirectional thrust bearing and a centripetal-guided bearing. They can support radial loads, axial loads from both directions and tilting moments free from clearance and are particularly suitable for bearing arrangements with high requirements for running accuracy,like rotary tables, millings heads and reversible clamps chucks , milling heads, measuring instruments , test equipment as well as rotary turntable.
.Due to the fixing holes in the bearing rings, the units are very easy to fit.


Items

Data

Unit

Description

YRT200

rotary table bearing



ID(inner diameter)/Bore

200

mm

OD(outer diameter)

300

mm

H:Width/Height/thickness

45

mm

d1

7

mm

d2

11

mm

d3

7

mm

H1

30

mm

H2

15

mm

J

215

mm

J1

285

mm

Ca (Axial Dynamic load rating)

98

KN

Coa (Axial Static load rating)

650

KN

Cr (Radial Dynamic load rating)

89

KN

Cor (Radial Static load rating)

236

KN

Ra (Roughness)

0.8

μm

Weight

9.7

KGS

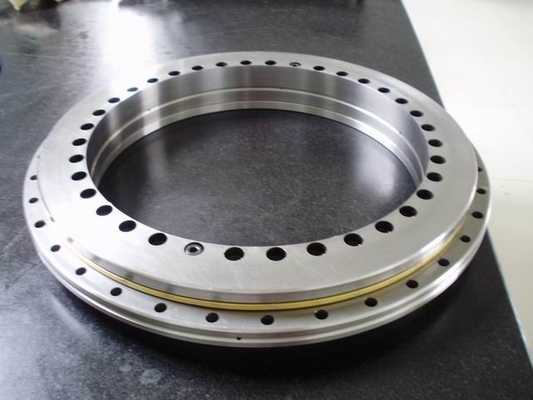

YRT200 rotary table bearing actual pictures as following:

YRT200 Rotary table bearing in stock, used in test equipment,quality guarantee ,offer sample
