YRT180 Rotary table bearing, Three row cylindrical roller bearing, high precision

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

YRT180 Rotary table bearing, Three row cylindrical roller bearing, high precision

China YRT180 Rotary table bearing, Three row cylindrical roller bearing, high precision supplier
YRT180 Rotary table bearing, Three row cylindrical roller bearing, high precision supplier YRT180 Rotary table bearing, Three row cylindrical roller bearing, high precision supplier YRT180 Rotary table bearing, Three row cylindrical roller bearing, high precision supplier

Large Image :  YRT180 Rotary table bearing, Three row cylindrical roller bearing, high precision

Product Details:

Place of Origin: China
Brand Name: JHB
Certification: Quality certificate
Model Number: YRT180

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: 1-1000USD
Packaging Details: Carton or standard export wooden case
Delivery Time: 10-20 days
Payment Terms: T/T,L/C
Supply Ability: 1000 pcs/month
Contact Now
Detailed Product Description



The YRT180 rotary table Bearing inner ring and outer ring forging material:GCr15SiMn ,GCr15, Chrome steel
The YRT180 Bearing roller material : GCr15SiMn ,GCr15, Chrome steel
The YRT180 Bearing Inner ring and outer ring hardness: 58-62HRC
The manufacture process including: Lathe process, Heat treatment process, Grinding process, Assembly process and final inspect process and on on.
The delivery time:10-20 days
The package: standard export wooden case or carton boxes.

YRT180 rotary table bearing is a kind of bearing fixed by a bidirectional thrust bearing and a centripetal-guided bearing. They can support radial loads, axial loads from both directions and tilting moments free from clearance and are particularly suitable for bearing arrangements with high requirements for running accuracy,like rotary tables, millings heads and reversible clamps chucks , milling heads, measuring instruments , test equipment as well as rotary turntable.

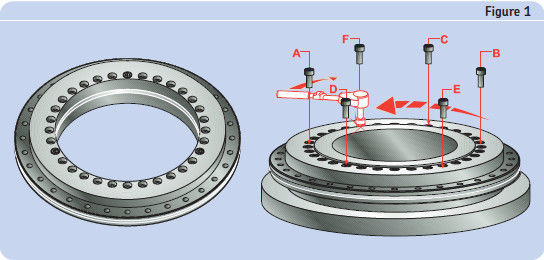

.Due to the fixing holes in the bearing rings, the units are very easy to fit.


Items

Data

Unit

Description

YRT180

rotary table bearing



ID(inner diameter)/Bore

180

mm

OD(outer diameter)

280

mm

H:Width/Height/thickness

43

mm

d1

7

mm

d2

11

mm

d3

7

mm

H1

29

mm

H2

14

mm

J

194

mm

J1

260

mm

Ca (Axial Dynamic load rating)

92

KN

Coa (Axial Static load rating)

580

KN

Cr (Radial Dynamic load rating)

83

KN

Cor (Radial Static load rating)

209

KN

Ra (Roughness)

0.8

μm

Weight

7.7

KGS
