YRT50 80 100 120 150 180 260 325 395 460 580 650 Rotary table bearing in stocks, offer sample

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

YRT50 80 100 120 150 180 260 325 395 460 580 650 Rotary table bearing in stocks, offer sample

China YRT50 80 100 120 150 180 260 325 395 460 580 650 Rotary table bearing in stocks, offer sample supplier
YRT50 80 100 120 150 180 260 325 395 460 580 650 Rotary table bearing in stocks, offer sample supplier YRT50 80 100 120 150 180 260 325 395 460 580 650 Rotary table bearing in stocks, offer sample supplier YRT50 80 100 120 150 180 260 325 395 460 580 650 Rotary table bearing in stocks, offer sample supplier YRT50 80 100 120 150 180 260 325 395 460 580 650 Rotary table bearing in stocks, offer sample supplier

Large Image :  YRT50 80 100 120 150 180 260 325 395 460 580 650 Rotary table bearing in stocks, offer sample

Product Details:

Place of Origin: China
Brand Name: JHB
Certification: ISO9001
Model Number: YRT50 80 100 120 150 180 260 325 395 460 580 650

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: USD1000/PCS
Packaging Details: standard export wooden case
Delivery Time: In stocks
Payment Terms: Western Union
Supply Ability: 500PCS
Contact Now
Detailed Product Description
Material: GCr15 GCr15SiMn Delivery Time: In Stocks
Roller: Three Row Cylindrical Roller

YRT50 80 100 120 150 180 260 325 395 460 580 650 Rotary table bearing in stocks, offer sample

YRT precision rotary table bearing is a kind of bearing fixed by a bidirectional thrust bearing and a centripetal-guided bearing. They can support radial loads, axial loads from both directions and tilting moments free from clearance and are particularly suitable for bearing arrangements with high requirements for running accuracy,like rotary tables, millings heads and reversible clamps chucks , milling heads, measuring instruments , test equipment as well as rotary turntable.
.Due to the fixing holes in the bearing rings, the units are very easy to fit.
The bearings are radially and axially preloaded after fitting
We had offer YRT rotary table bearing to Romania,India, USA ,Canada,Germany,Singapore, It will used C-axis for turret .If you need the sample or drawing we can offer to you.
YRT rotary table bearing dimension as follows:


Code NumberBasic Dimension
 dToleranceDToleranceHToleranceTCd1dndm
YRT50500 ~ -0.0081260 ~ -0.01130± 0.125201010563116
YRT80800 ~ -0.0091460 ~ -0.01135± 0.1523.351213092138
YRT1001000 ~ -0.011850 ~ -0.01538± 0.1752512160112170
YRT1201200 ~ -0.012100 ~ -0.01540± 0.1752612184135195
YRT1501500 ~ -0.0132400 ~ -0.01540± 0.1752612214165225
YRT1801800 ~ -0.0132800 ~ -0.01843± 0.1752915244194260
YRT2002000 ~ -0.0153000 ~ -0.01845± 0.1753015274215285
YRT2602600 ~ -0.0183850 ~ -0.0255± 0.236.518345280365
YRT3253250 ~ -0.0234500 ~ -0.02360±0.24020415342430
YRT3953950 ~ -0.0235250 ~ -0.02865±0.242.520486415505
YRT4604600 ~ -0.0236000 ~ -0.02870± 0.2254622560482580
YRT5805800 ~ -0.0257500 ~ -0.03590±0.256030700610720
YRT6506500 ~ -0.0388700 ~ -0.05122±0.257834800680830
YRT8508500 ~ -0.0510950 ~ -0.063124± 0.380.53710188901055
YRT9509500 ~ -0.0512000 ~ -0.063132±0.3864011309901160
YRT10301030 1300 145 92.540121510751255


Delivery time: From YRT50 to YRT 580 We had in stocks , from YRT650 TO YRT950 Bearing it will need 20-30 days
Precision grade:P4 P2 Grade
Price: Lower price than local market
Material:GCr15,GCr15SiMn
Place:Made In China
Quality guarantee: one year
Produce process: Rough turning, soft turning, heat treatment, Rough turning Soft grinding, assembly, inspection ,All the process will need to check the dimension to insure the allow tolerance.
Warehouse: we had stocks in batch to insure delivery time on time. At current our forging market will take 70%, we promise that on time, safe,high efficiency,lower cost to meet the customer need.

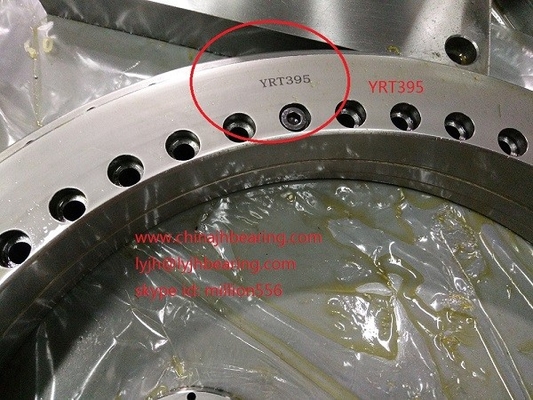

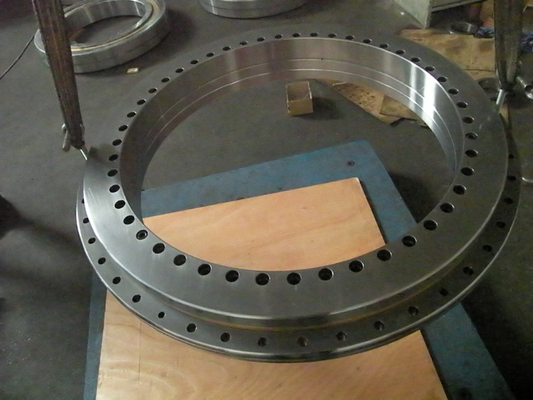

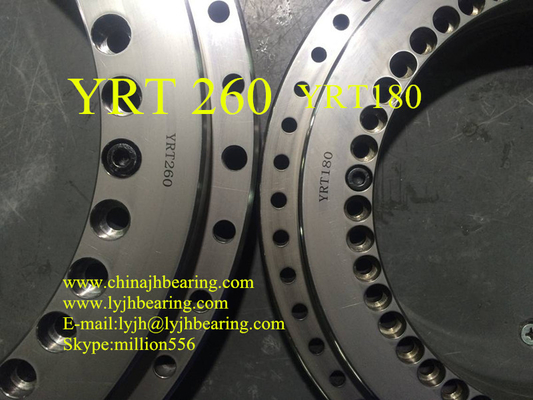

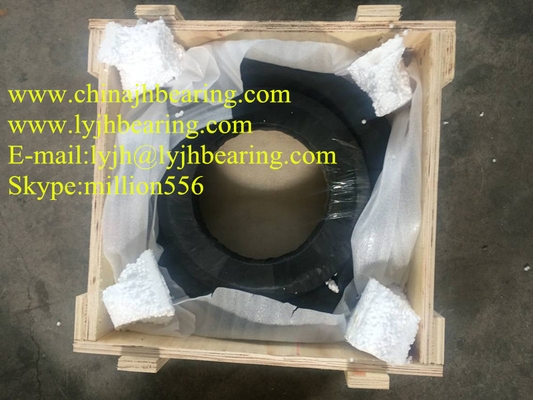

YRT50 80 100 120 150 180 260 325 395 460 580 650 bearing reference pictures:
YRT50 80 100 120 150 180 260 325 395 460 580 650 Rotary table bearing in stocks, offer sample
