YRT180 swiveling bearing used for CNC Machine tool numerical machine rotary table,180x280x43mm in stock

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

YRT180 swiveling bearing used for CNC Machine tool numerical machine rotary table,180x280x43mm in stock

China YRT180 swiveling bearing used for CNC Machine tool numerical machine rotary table,180x280x43mm in stock supplier
YRT180 swiveling bearing used for CNC Machine tool numerical machine rotary table,180x280x43mm in stock supplier YRT180 swiveling bearing used for CNC Machine tool numerical machine rotary table,180x280x43mm in stock supplier YRT180 swiveling bearing used for CNC Machine tool numerical machine rotary table,180x280x43mm in stock supplier YRT180 swiveling bearing used for CNC Machine tool numerical machine rotary table,180x280x43mm in stock supplier

Large Image :  YRT180 swiveling bearing used for CNC Machine tool numerical machine rotary table,180x280x43mm in stock

Product Details:

Place of Origin: China
Brand Name: JHB or OEM
Certification: Quality certificate
Model Number: YRT180

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: USD1000/PCS
Packaging Details: export wooden case
Delivery Time: 2 days
Payment Terms: T/T,ALIPAY
Contact Now
Detailed Product Description
Material: GCr15SiMn Application: Rotary Table Machine Tool
Package: Export Wooden Case Delivery Time: In Stock

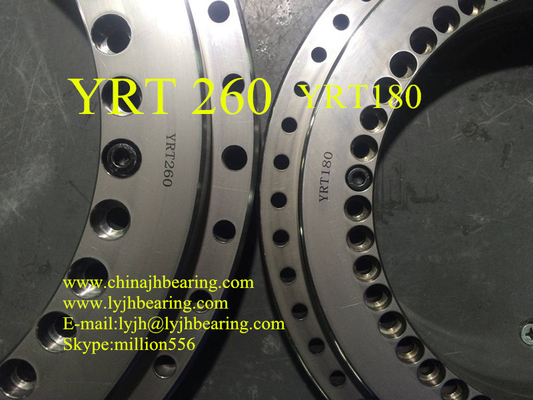

YRT180 swiveling bearing used for CNC Machine tool numerical machine rotary table,180x280x43mm in stock





We/jinhang precision YRT180 Bearing manufacture from LuoYang China,we focus on the precision bearing design ,manufacture and sales and after sales services. The YRT180 Bearing had export to USA,Germany,Mexico,and Italy. The quality had approved the customer praise.It can replace the INA/FAG Bearinig accuracy. Hope we can offer the reliable bearing quality to you.
Here YRT180 rotary table bearing data as following:



  Boundary dimensiom(mm) Basic load rating(KN)
YRT180 Bearing Inner dia Out dia height Axial load(KN) Radial load(KN)
180 280 43 Dynamic static Dynamic static
118 710 69.5 280



YRT 180 Bearing with three row cylindrical roller structure,It can bear radial load and axial load.
The YRT Bearing material GCr15SiMn, the heat treatment can reach to HRC58-62. All the lathe process,grinding process will manufactured by CNC machine .It can assure the high accuracy and runout.



YRT180 Bearing installation requirement:
Retaining screws secure the bearing components during transport.For installing the bearing easier,the screws should be loosed before fitting ,and secured again or replaced by positioning screws after fitting.

YRT 180 Bearing application:
C-axis for turret GDM-2000,Hoot connection,rotating tables and indexing mechanisms of milling or drilling machines.

YRT180 swiveling bearing used for CNC Machine tool numerical machine rotary table,180x280x43mm in stock

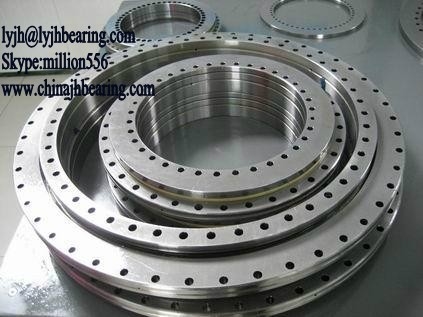

Meanwhile, the YRT50 YRT100 YRT150 YRT180 YRT 200 YRT260 YRT325 YRT395 YRT460 YRT580 YRT650 in stock,for YRT850 bearing, the delivery time about 45 days if get the order.

For the YRT180 Bearing package:

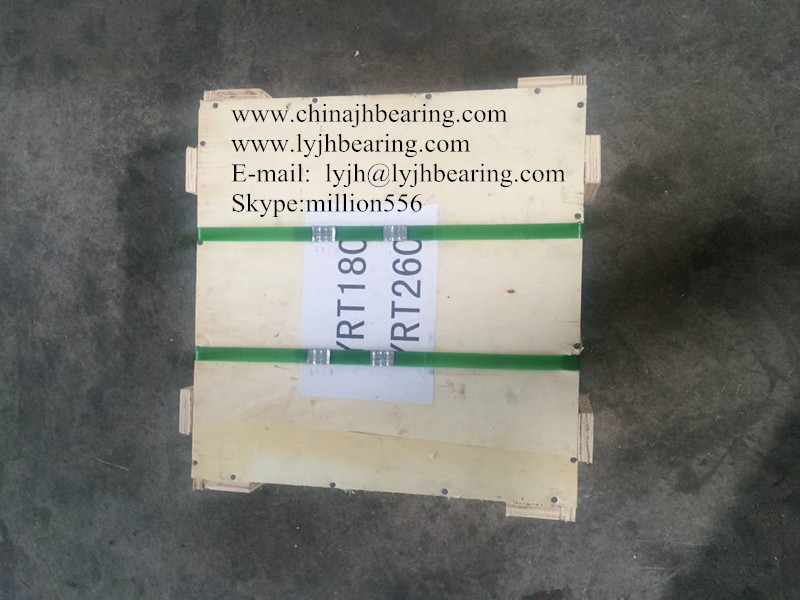

It will packed by export wooden case , they are very strong and suit for long shipping trip.Please check the picture



For the YRT180 Bearing,if you have question,Please contact us:
