RA5008UUCC0 Crossed roller bearing 50x66x8mm in stock,used for machine tool

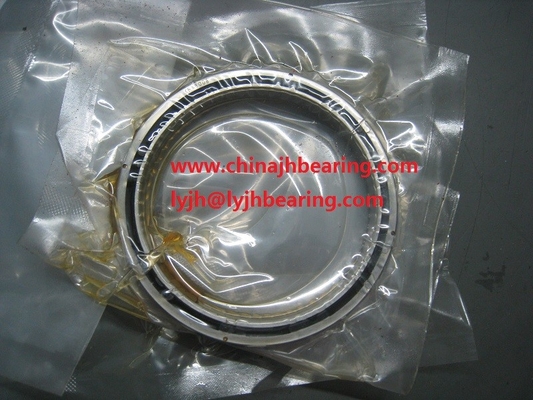

Large Image : RA5008UUCC0 Crossed roller bearing 50x66x8mm in stock,used for machine tool

Product Details:

Place of Origin:	China LuoYang
Brand Name:	JHB or OEM
Certification:	ISO9001
Model Number:	RA5008UUCC0

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	USD50
Packaging Details:	vacuum package
Delivery Time:	2 days

Contact Now

Detailed Product Description

Material:	GCr15	Application:	Machine Tool
Package:	Carton	Seal:	Double Seal

RA5008UUCC0 Crossed roller bearing 50x66x8mm in stock

RA5008UUCC0 Crossed roller bearing structure:
It consist of outer ring ,inner ring and small roller and spacer.Each roller in a crossed roller bearing is crossed at a 90° angle,which is able to handle the loading force from multiple direction at the same time. RA crossed roller bearing series belong to outer ring split in half, the inner ring whole unit.RA5008UUCC0 Bearing belongs to light and compact type with thinnest possible inner and outer ring.It is suit for place that weight reduction and downsizing are required,such as the hand swiveling unit robots and manipulators.
The ring and roller material are GCr15.

RA5008UUCC0 Bearing dimension specification:

Bearing type

Boundary dimension

(mm)

Load rating

weight

Equivalent bearing type

RA5008UUCC0

KGS

5.1

7.19

0.08

THK:RA5008

IKO:CRBS508

UU:with seal attached on both sides
U:with seal attached on one side
CCO:negative clearance
CO:positive clearance
C1:positive clearance(greater than CO)
Grade: No Symbol normal grade 0
USP:USP grade rotation accuracy
The delivery time: in stock
The package:vacuum packing and carton

RA5008UUCC0 Crossed roller bearing 50x66x8mm in stock,used for machine tool

RA5008 UUCC0 crossed roller bearing features:
1.High rigidity
2.High rotational accuracy
3.Strictly dimension tolerance
4.Smooth rotation
5.Compact ,space saving
6.Easy installation and adjustment
7.Light series

RA5008 UUCC0 Bearing application:
Industrial automation control
Robotics
Machine tools
Inspection and medical devices
