RA18013C bearing price,RA18013 Bearing size:180X206X13 MM

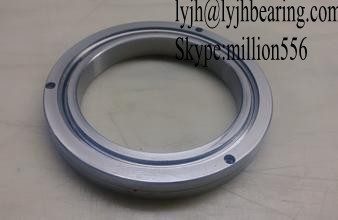

 Crossed roller bearing RA18013C Belongs to Model RA-C(Single-split type).The major dimensions of this model are the same as that of model RA.Since the outer ring is split at one point to increase the rigidity of the outer ring, this model can also be used for outer ring rotation.

Name: RA18013C Bearing or RA18013C roller bearing or RA18013C Crossed roller bearing, The bearing RA18013C shaft diameter:180 mm,

Dimension(dxDxB):180X206X13 MM

Inner diameter (d):180mm

Outer diameter(D):206 mm

Width(B):13 mm

Weight:0.68kgs

Radial Basic load rating: C:24.5  KN, Co:49 KN

Precision grade:  P2 P4 P5 class

Material:GCr15,GCr15SiMn

Delivery time: in stock, after getting the order, within 2 days will send the customer,If ex-stock,it will need 30-40 days.

Shipping term: By DHL or UPS or Fedex or TNT or customer required.

Crossed roller bearing RA18013C application such as joints and swiveling units of industrial robots,swiveling table of machining centers,rotary units of manipulators, precison rotary table, medical equipment,meansuring instruments and IC manufacturing machines.

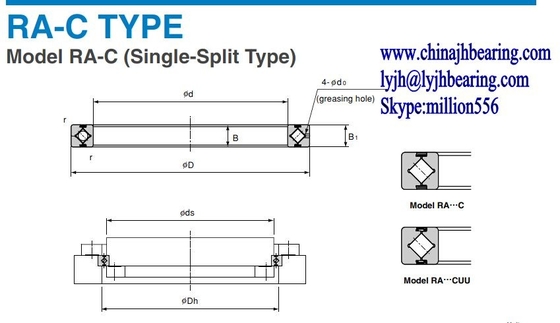

Crossed roller bearing RA18013C  rough drawing as following:
