To order Crossed roller bearing RB14025, RB14025 Bearing size:140X200X25MM

Large Image : To order Crossed roller bearing RB14025, RB14025 Bearing size:140X200X25MM

Product Details:

Place of Origin:	China
Brand Name:	JHB or OEM
Certification:	RB14025 Quality certificate
Model Number:	RB14025

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Carton or standard export wooden case
Delivery Time:	in stock
Payment Terms:	T/T,L/C
Supply Ability:	1000 pcs/month

Contact Now

Detailed Product Description

Crossed roller bearing RB14025 Belongs to Model RB Separable outer ring type for inner ring rotation.Being the basic model of the cross roller ring,its outer ring is separable while the inner ring is integrated with the main body.This model is used in locations where the rotation accuracy of the inner ring is required,Major applications include the index table swiveling unit or machine tools.

Name: RB14025 Bearing or RB14025 roller bearing or RB14025 Crossed roller bearing, The bearing RB14025 shaft diameter:140 mm,

Dimension(dxDxB):140X200X25MM

Inner diameter (d):140mm

Outer diameter(D):200mm

Width(B):25mm

Weight:3 kgs

Radial Basic load rating: C:74 KN,Co:121 KN

Precision grade: P2 P4 P5 class

Material:GCr15,GCr15SiMn

Delivery time: in stock, after getting the order, within 2 days will send the customer

Shipping term: By DHL or UPS or Fedex or TNT or customer required.

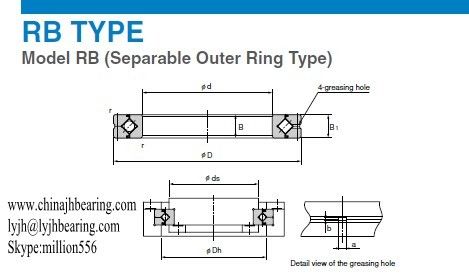

The bearing RB14025 profile as following:
