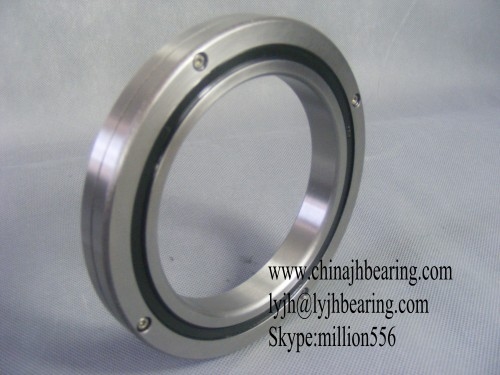

Crossed roller bearing RB10016 bearing size 100X140X16mm, GCr15 Material

 Crossed roller bearing RB10016 Belongs to Model RB Separable outer ring type for inner ring rotation.Being the basic model of the cross roller ring,its outer ring is separable while the inner ring is integrated with the main body.This model is used in locations where the rotation accuracy of the inner ring is required,Major applications include the index table swiveling unit or machine tools.

Name: RB10016  Bearing or RB10016 roller bearing or RB10016 Crossed roller bearing, The bearing RB10016 shaft diameter:100 mm,

Dimension(dxDxB):100X140X16MM

Inner diameter (d):100mm

Outer diameter(D):140mm

Width(B):16mm

Weight:0.83 kgs

Radial Basic load rating: C:31.7 KN,Co:48.6 KN

Precision grade: P2 P4 P5 class

Material:GCr15,GCr15SiMn

Delivery time: in stock, after getting the order, within 2 days will send the customer

Shipping term: By DHL or UPS or Fedex or TNT or customer required.

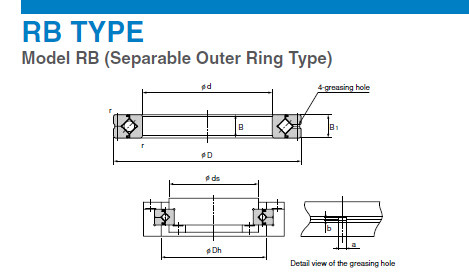

The bearing  RB10016  profile as following:
