RB2008 Crossed roller bearing,RB2008 bearing 20X36X8mm,in stock

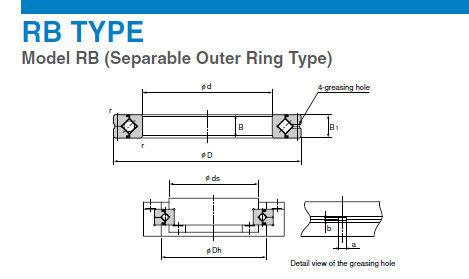

  Crossed roller bearing RB2008 Belongs to Model RB Separable outer ring type for inner ring rotation.Being the basic model of the cross roller ring,its outer ring is separable while the inner ring is integrated with the main body.This model is used in locations where the rotation accuracy of the inner ring is required,Major applications include the index table swiveling unit or machine tools.

Name: RB2008  Bearing or RB2008 roller bearing or RB2008 Crossed roller bearing, The bearing RB2008  shaft diameter:20 mm,

Dimension(dxDxB):20X36X8MM

Inner diameter (d):20mm

Outer diameter(D):36mm

Width(B):8mm

Weight:0.04 kgs

Radial Basic load rating: C:3.23 KN,Co:3.1 KN

Precision grade: P2 P4 P5 class

Material:GCr15,GCr15SiMn

Delivery time: in stock, after getting the order, within 2 days will send the customer

Shipping term: By DHL or UPS or Fedex or TNT or customer required.

UU:with seal attached on both sides

U:with seal attached on one side

CCO:negative clearance

CO:positive clearance

C1:positive clearance(greater than CO)

Grade: No Symbol normal grade 0

USP:USP grade rotation accuracy

The delivery time: in stock

The package:vacuum packing and carto
