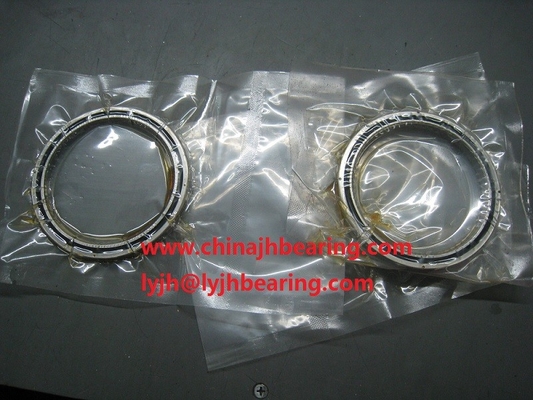

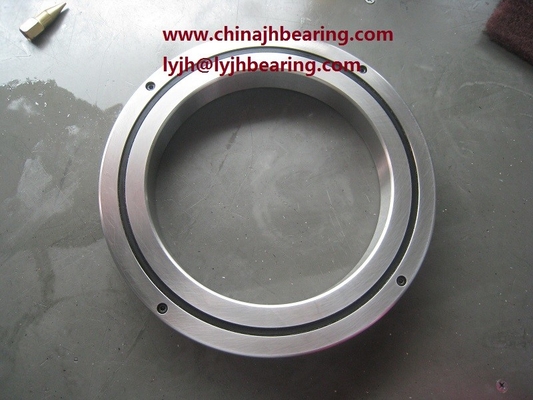

Crossed roller bearing RU228X ,160X295X35MM,in stock,robots machine application

Crossed roller bearing RU228X Belongs to Model RU integrated inner/outer ring type, the mounting holes are provided, this model doesn’t require a presser flange or housing.  In addition,because it has an integrated inner/outer ring structure and is equipped with washers ,Its performance is minimally affected by the mounting procedure, ensuring stable rotation accuracy and torque. This model can be used for both inner-ring rotation and outer-ring rotation.

Name: RU228X Bearing or RU228X roller bearing or RU228X Crossed roller bearing, The bearing RU228X shaft diameter:160 mm,

Dimension(dxDxB):160X295X35MM

Inner diameter (d):160mm

Outer diameter(D):295mm

Width(B):35mm

Weight:11.4 kgs

Radial Basic load rating: C:104 KN,Co:173 KN

Precision grade: P2 P4 P5 class

Material:GCr15,GCr15SiMn

Delivery time: in stock, after getting the order, within 2 days will send the customer

Shipping term: By DHL or UPS or Fedex or TNT or customer required.

RU228X crossed roller bearing features:
1.High rigidity
2.High rotational accuracy
3.Strictly dimension tolerance
4.Smooth rotation
5.Compact ,space saving
6.Easy installation and adjustment
7.Light series
