offer RU148X Crossed roller bearing sample,,90X210X25MM,used for robots machine

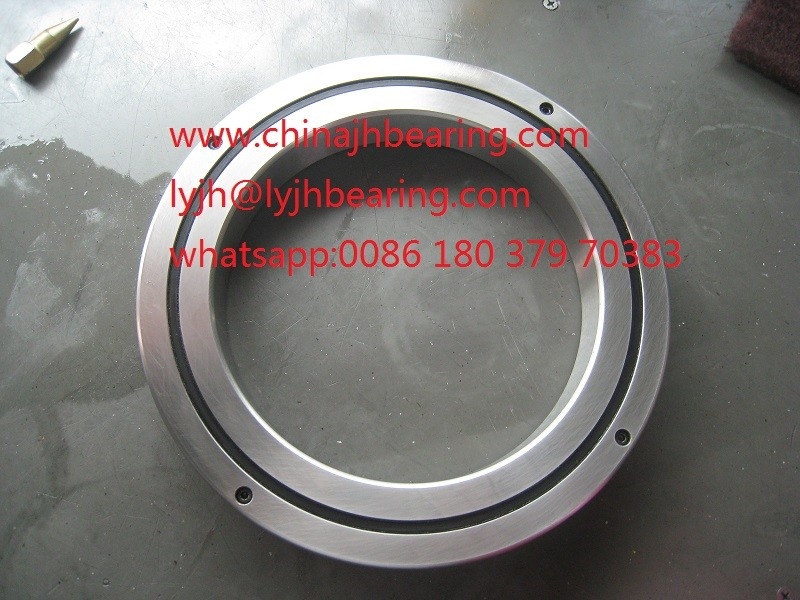

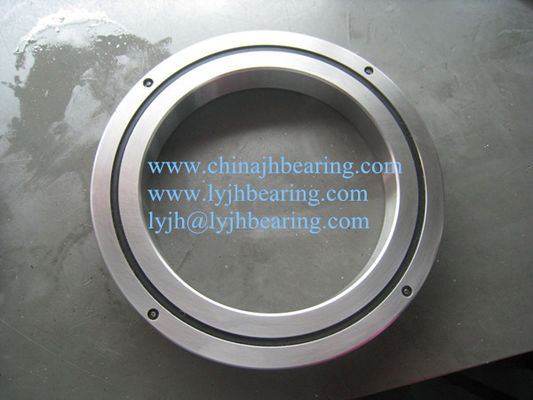

 Crossed roller bearing RU148X Belongs to Model RU integrated inner/outer ring type, the mounting holes are provided, this model doesn’t require a presser flange or housing.  In addition,because it has an integrated inner/outer ring structure and is equipped with washers,Its performance is minimally affected by the mounting procedure, ensuring stable rotation accuracy and torque. This model can be used for both inner-ring rotation and outer-ring rotation.

Name: RU148X Bearing or RU148X roller bearing or RU148X Crossed roller bearing, The bearing RU148X shaft diameter:90mm,

Dimension(dxDxB):90X210X25MM

Inner diameter (d):90mm

Outer diameter(D):210mm

Width(B):25mm

Weight:4.9 kgs

Radial Basic load rating: C:49.1 KN,Co:76.8 KN

Precision grade: P2 P4 P5 class

Material:GCr15

Delivery time: in stock, after getting the order, within 2 days will send the customer

Shipping term: By DHL or UPS or Fedex or TNT or customer required.



UU:with seal attached on both sides
U:with seal attached on one side
CCO:negative clearance
CO:positive clearance
C1:positive clearance(greater than CO)
Grade: No Symbol normal grade 0
USP:USP grade rotation accuracy
P5: P5 grade rotation accuracy
The delivery time: in stock

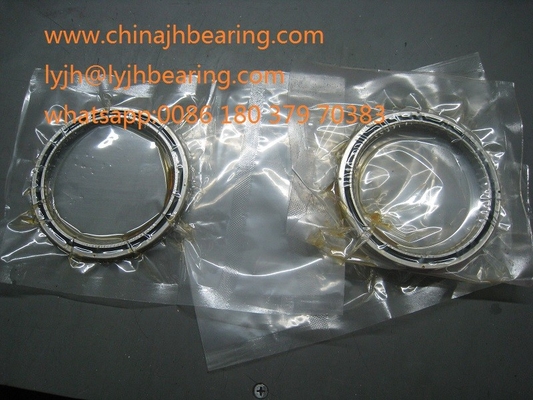

The package:vacuum packing and carton
