Home ProductsSuper Precision Angular Contact ball bearing

JinHang precision Angle contact ball bearing 7208C dimension:40x80x18mm,15 Degree

I'm Online Chat Now

JinHang precision Angle contact ball bearing 7208C dimension:40x80x18mm,15 Degree

China JinHang precision Angle contact ball bearing 7208C dimension:40x80x18mm,15 Degree supplier

Large Image :  JinHang precision Angle contact ball bearing 7208C dimension:40x80x18mm,15 Degree

Product Details:

Place of Origin: Japan
Brand Name: NSK or OEM
Certification: Quality certificate
Model Number: 7208C

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: Negotiation
Packaging Details: Carton or standard export wooden case
Delivery Time: in stock, if Ex-stock, It will need 5- 8 days
Payment Terms: T/T,L/C
Supply Ability: 1000 PCS/Month
Detailed Product Description
Precision Rating: P4 P5 Seals Type: No Seal
Number Of Row: Single Row

 JinHang precision Angle contact ball bearing 7208C dimension:40x80x18mm,15 Degree

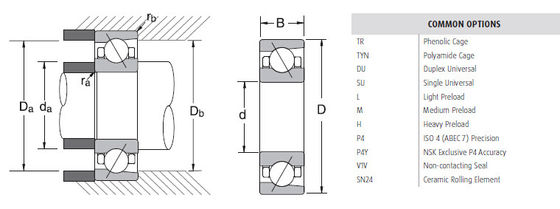

NSK Super precision bearing 7208C  description as following:



Bearing Code

NSK    7208C

Bearing type

Angular Contact ball bearings   7208C

Series

7000  7200   7900

Bore size(dXDxB)

40x80x18mm

Remark: 00:10mm  01:12mm 02:15mm 03:17mm

04:20mm  05:25mm 12:60mm 20:100mm

Contact Angle

C:15°    A5:25°

Ball material

Blank: steel ball, SN24:Ceramic ball

Cage symbols

TR: phenolic  TYN: Polyamide

Combination symbols

DU: Duplex universal

SU: Single Universal

Preload Symbols

L:light  M:Medium  H:Heavy

Precision Class

P4:ISO Class 4(ABEC 7)

P4Y:NSK Exclusive P4 accuracy

P3:Dimension ISO Class 4,Running accuracy:ISO Class 2

P2:ISO Class 2 (ABEC 9)

Basic load ratings(lbs)

Cr: 8160 lbs

Cor: 5670 lbs

Limiting speeds(1000RPM)

Grease: 19.2 RPM

Oil:  29.2   RPM

Bearing weight

 0.79   lbs



7208C   Ball bearing Applications:

Super Precision Angular Contact bearings  7208C   are specifically designed for rigid, high-speed, high-precision machine tool spindles. Their state-of the- art preload control assures consistent high performance.

Lathes   Boring Machinery   Grinders   Machining Centers   Milling Machines   Slicing Machines   Drilling Machines  Gem Cutting Machines

The delivery time: in stock, within one day after getting the order

Package:standard carton or standard wooden case.

  Shipping term:TNT,FEDEX,DHL UPS Express or your required.

JinHang precision Angle contact ball bearing 7208C dimension:40x80x18mm,15 Degree



 Price: if you want to know the price  7207C  bearing ,Please send us:
