Angle contact ball bearing 7207A5 dimension:35x72x17mm, Single row,25 Degree JHB Supplied

Large Image : Angle contact ball bearing 7207A5 dimension:35x72x17mm, Single row,25 Degree JHB Supplied

Product Details:

Place of Origin:	Japan
Brand Name:	NSK or OEM
Certification:	Quality certificate
Model Number:	7207A5

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Carton or standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 5- 8 days
Payment Terms:	T/T,L/C
Supply Ability:	1000 PCS/Month

Contact Now

Detailed Product Description

Precision Rating:	P4 P5	Seals Type:	No Seal
Number Of Row:	Single Row

Angle contact ball bearing 7207A5 dimension:35x72x17mm, Single row,25 Degree JHB Supplied

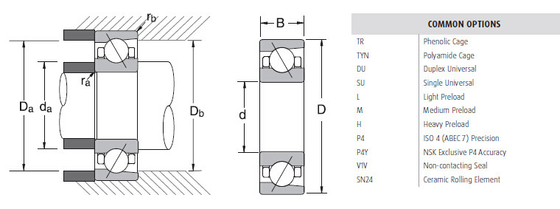

NSK Super precision bearing 7207A5 description as following:

Bearing Code	NSK 7207A5
Bearing type	Angular Contact ball bearings 7207A5
Series	7000 7200 7900
Bore size(dXDxB)	35x72x17mm Remark: 00:10mm 01:12mm 02:15mm 03:17mm 04:20mm 05:25mm 12:60mm 20:100mm
Contact Angle	C:15° A5:25°
Ball material	Blank: steel ball, SN24:Ceramic ball
Cage symbols	TR: phenolic TYN: Polyamide
Combination symbols	DU: Duplex universal SU: Single Universal
Preload Symbols	L:light M:Medium H:Heavy
Precision Class	P4:ISO Class 4(ABEC 7) P4Y:NSK Exclusive P4 accuracy P3:Dimension ISO Class 4,Running accuracy:ISO Class 2 P2:ISO Class 2 (ABEC 9)
Basic load ratings(lbs)	Cr: 6550 lbs Cor: 4300 lbs
Limiting speeds(1000RPM)	Grease: 18.7 RPM Oil: 28.1 RPM
Bearing weight	0.61 lbs

7207A5 Ball bearing Applications:

Super Precision Angular Contact bearings 7207A5 are specifically designed for rigid, high-speed, high-precision machine tool spindles. Their state-of the- art preload control assures consistent high performance.

Lathes Boring Machinery Grinders Machining Centers Milling Machines Slicing Machines Drilling Machines Gem Cutting Machines

The delivery time: in stock, within one day after getting the order

Package:standard carton or standard wooden case.

Shipping term:TNT,FEDEX,DHL UPS Express or your required.

Angle contact ball bearing 7207A5 dimension:35x72x17mm, Single row,25 Degree JHB Supplied

Price: if you want to know the price 7207A5 bearing ,Please send us:
