Home ProductsSuper Precision Angular Contact ball bearing

Angle contact ball bearing No.:7034C or 7034A5 dimension:170x260x42mm, DU SU arrangement

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

Angle contact ball bearing No.:7034C or 7034A5 dimension:170x260x42mm, DU SU arrangement

China Angle contact ball bearing No.:7034C or 7034A5 dimension:170x260x42mm, DU SU arrangement supplier
Angle contact ball bearing No.:7034C or 7034A5 dimension:170x260x42mm, DU SU arrangement supplier Angle contact ball bearing No.:7034C or 7034A5 dimension:170x260x42mm, DU SU arrangement supplier

Large Image :  Angle contact ball bearing No.:7034C or 7034A5 dimension:170x260x42mm, DU SU arrangement

Product Details:

Place of Origin: Japan
Brand Name: NSK or OEM
Certification: Quality certificate
Model Number: 7034C or 7034A5

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: Negotiation
Packaging Details: Carton or standard export wooden case
Delivery Time: in stock, if Ex-stock, It will need 5- 8 days
Payment Terms: T/T,L/C
Supply Ability: 1000 PCS/Month
Contact Now
Detailed Product Description
Precision Rating: P4 P5 Seals Type: No Seal
Number Of Row: Single Row

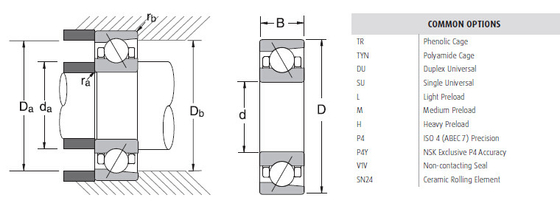

 Angle contact ball bearing No.:7034C or 7034A5 dimension:170x260x42mm, DU SU arrangement





ShippNSK Super precision bearing 7034C or 7034A5 description as following:



Bearing Code

NSK   7034C or 7034A5

Bearing type

Angular Contact ball bearings  7034C or 7034A5

Series

7000  7200   7900

Bore size(dXDxB)

170x260x42mm

Remark: 00:10mm  01:12mm 02:15mm 03:17mm

04:20mm  05:25mm 12:60mm 20:100mm

Contact Angle

C:15°    A5:25°

Ball material

Blank: steel ball, SN24:Ceramic ball

Cage symbols

TR: phenolic  TYN: Polyamide

Combination symbols

DU: Duplex universal

SU: Single Universal

Preload Symbols

L:light  M:Medium  H:Heavy

Precision Class

P4:ISO Class 4(ABEC 7)

P4Y:NSK Exclusive P4 accuracy

P3:Dimension ISO Class 4,Running accuracy:ISO Class 2

P2:ISO Class 2 (ABEC 9)

Basic load ratings(lbs)

Cr: 46100 lbs

Cor: 52700 lbs

Limiting speeds(1000RPM)

Grease: 5.4 RPM

Oil:  8.2   RPM

Bearing weight

 17.2    lbs



7034C or 7034A5  Ball bearing Applications:

Super Precision Angular Contact bearings  7034C or 7034A5 are specifically designed for rigid, high-speed, high-precision machine tool spindles. Their state-of the- art preload control assures consistent high performance.

Lathes   Boring Machinery   Grinders   Machining Centers   Milling Machines   Slicing Machines   Drilling Machines  Gem Cutting Machines

The delivery time: in stock, within one day after getting the order

Package:standard carton or standard wooden caseing term:TNT,FEDEX,DHL UPS Express or your required.

Angle contact ball bearing No.:7034C or 7034A5 dimension:170x260x42mm, DU SU arrangement



     Price: if you want to know the price  7034C or 7034A5  ,Please send us by e-mail to lyjh@lyjhbearing.com, we will quote price for you soon.
