Angle contact ball bearing 7020C or 7020A5 dimension:100x150x24mm, P4 P3 P2 grade

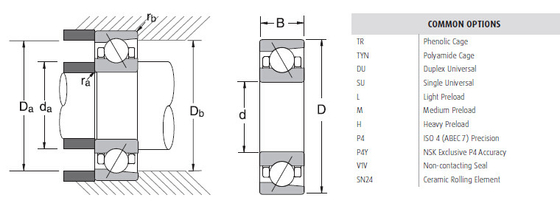

Large Image : Angle contact ball bearing 7020C or 7020A5 dimension:100x150x24mm, P4 P3 P2 grade

Product Details:

Place of Origin:	Japan
Brand Name:	NSK or OEM
Certification:	Quality certificate
Model Number:	7020C or 7020A5

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Carton or standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 5- 8 days
Payment Terms:	T/T,L/C
Supply Ability:	1000 PCS/Month

Contact Now

Detailed Product Description

Precision Rating:	P4 P5	Seals Type:	No Seal
Number Of Row:	Single Row

Angle contact ball bearing 7020C or 7020A5 dimension:100x150x24mm, P4 P3 P2 grade

NSK Super precision bearing 7020C or 7020A5 description as following:

Bearing Code	NSK 7020C or 7020A5
Bearing type	Angular Contact ball bearings 7020C or 7020A5
Series	7000 7200 7900
Bore size(dXDxB)	100x150x24mm Remark: 00:10mm 01:12mm 02:15mm 03:17mm 04:20mm 05:25mm 12:60mm 20:100mm
Contact Angle	C:15° A5:25°
Ball material	Blank: steel ball, SN24:Ceramic ball
Cage symbols	TR: phenolic TYN: Polyamide
Combination symbols	DU: Duplex universal SU: Single Universal
Preload Symbols	L:light M:Medium H:Heavy
Precision Class	P4:ISO Class 4(ABEC 7) P4Y:NSK Exclusive P4 accuracy P3:Dimension ISO Class 4,Running accuracy:ISO Class 2 P2:ISO Class 2 (ABEC 9)
Basic load ratings(lbs)	Cr: 17000 lbs Cor: 17400 lbs
Limiting speeds(1000RPM)	Grease: 9.2 RPM Oil: 14 RPM
Bearing weight	3.18 lbs

7020C or 7020A5 Ball bearing Applications:

Super Precision Angular Contact bearings 7020C or 7020A5 are specifically designed for rigid, high-speed, high-precision machine tool spindles. Their state-of the- art preload control assures consistent high performance.

Lathes Boring Machinery Grinders Machining Centers Milling Machines Slicing Machines Drilling Machines Gem Cutting Machines

The delivery time: in stock, within one day after getting the order

Package:standard carton or standard wooden case

Shipping term:TNT,FEDEX,DHL Express or your required

Price: if you want to know the price 7020C or 7020A5 ,Please send us by e-mail to lyjh@lyjhbearing.com, we will quote price for you soon.
